Keywords
Liquid tanker Semi-trailer, fuel hauling semi-trailer, oil tanker trailer, compartment tanker trailer, alloy fuel tank trailer, carbon steel tanker semi-trailer
Functions

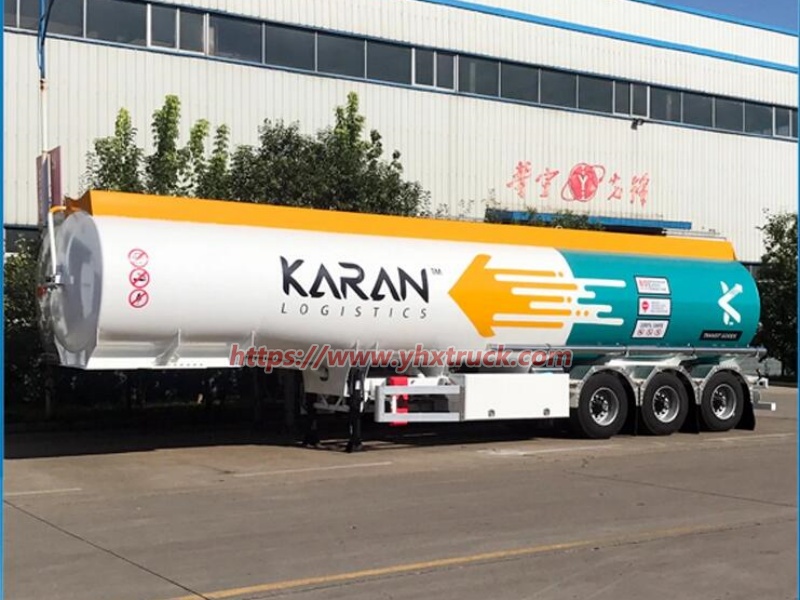

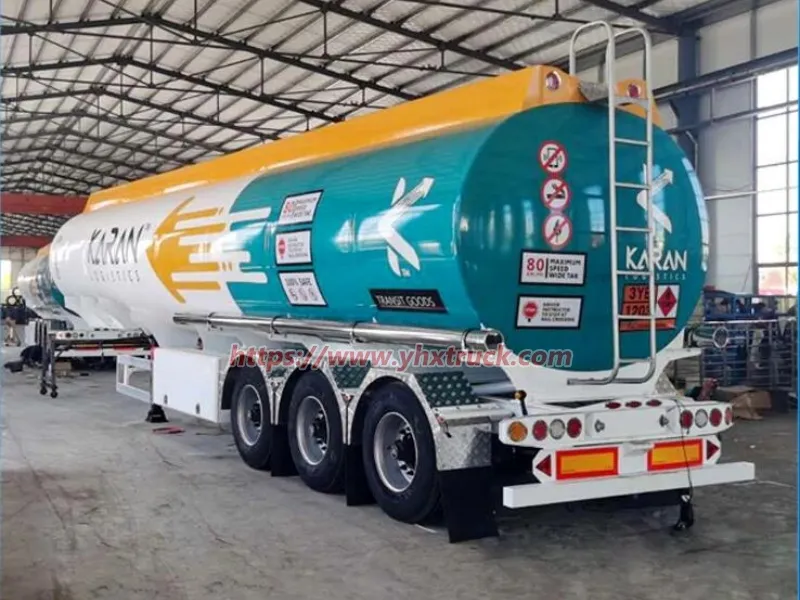

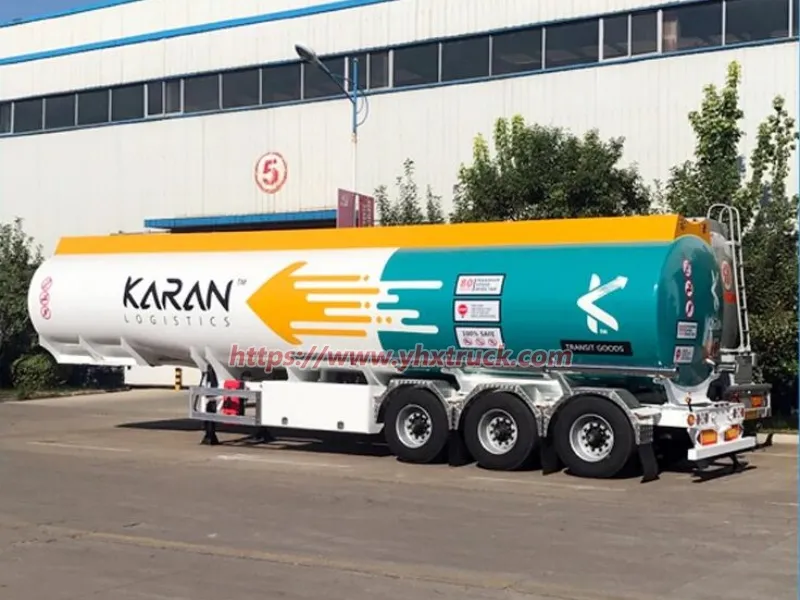

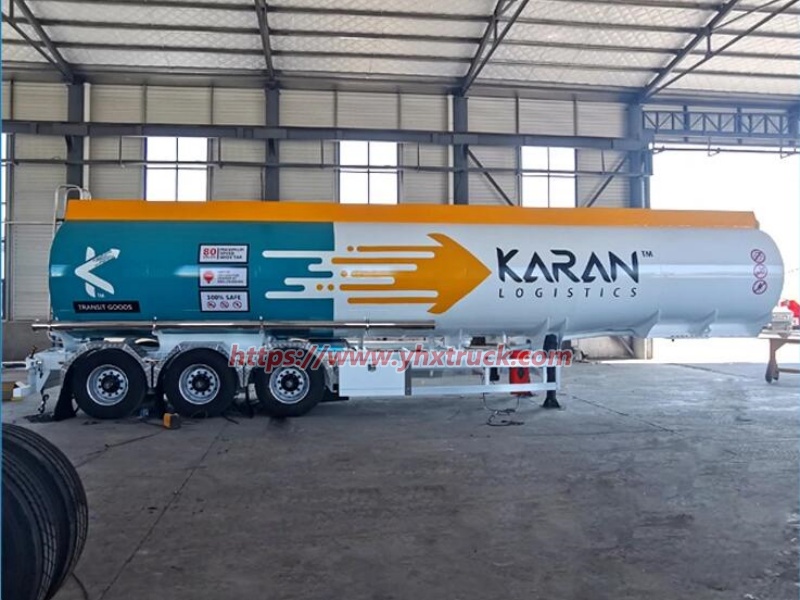

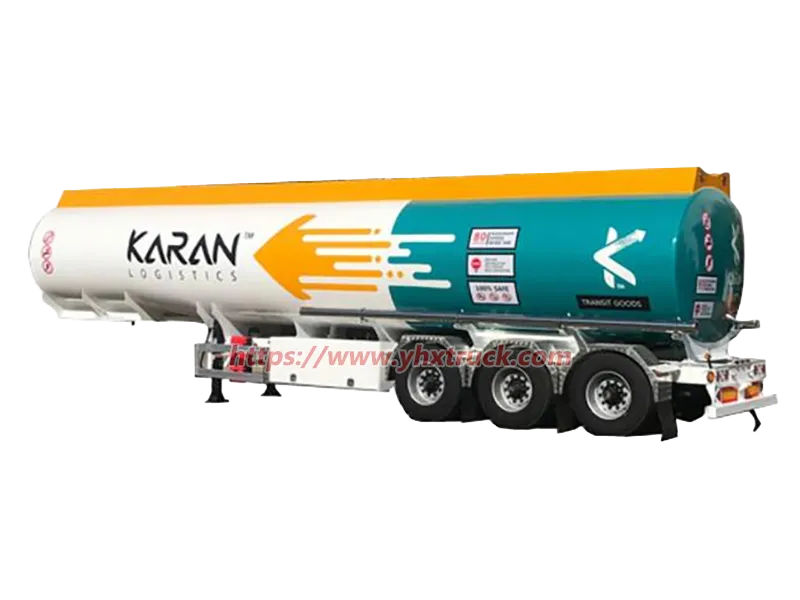

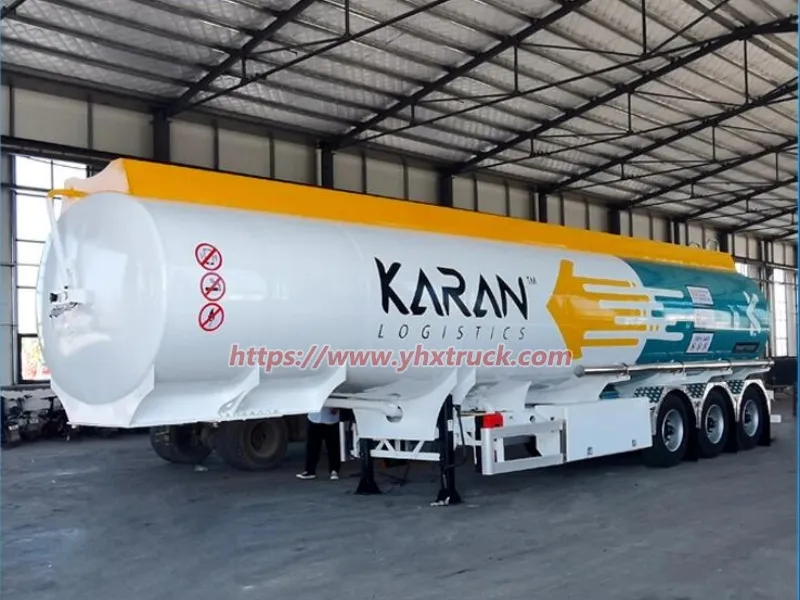

Liquid fuel semi-trailer serves for transporting petrol, diesel, kerosene, lube oil, crude oil and alcohol. Compartmentalized tank allows loading different liquids individually.
Features
· Capacity: 18000–55000 L
· Material Choices: Carbon steel, stainless steel, aluminum alloy; epoxy coating optional for steel tanks.
· Standard Assembly: Tank body, Fuwa/BPW axles, landing supports, Jost kingpin, manholes, ladder, hoses and discharge box.
· World-class Parts: Civacon, EMCO Wheaton, Dixon and other famous fuel system parts.
· Optional Configurations: BPW axles, air suspension, bottom loading & gas recovery system.
Safety Configuration
European-style manholes, emergency bottom valves, anti-sloshing baffles, foldable handrails, static protection devices, fire extinguishers and reflective marks ensure travel safety.
Advantages
Attractive outlook and stable structure. Premium raw materials and robust core parts. Top-brand axles ensure great load capacity and extended service time.
Specifications:
Liquid fuel semi-trailer (30,000 Litres) | ||
General | Overall Dimension | 12000 * 2500 * 3650 mm |
GVW / Kerb Weight | 36,000kg / 10,600kg | |
Superstructure | Tank Capacity | 30,000 Litres (7,900 gallons) |
Tank | Made of Carbon steel with inner baffles to prevent fuel surge during moving. | |
Kingpin | 2” or 3.5” | |
Landing Gear | 28 Ton capacity | |
Axles | 2 axles, 13Ton, FUWA or BPW brand | |
Tyre | 11.00-20, 11.00R20, 315/80R22.5 | |
Paint | Automotive metallic paint | |
All standard accessories: manhole, ladder, inlet, discharge, anti-slip walkway, hose, reflective strips…….. | ||
Optional | ** Tank material could be carbon steel, stainless steel, alluminum…… ** It can be divided into many compartments to load different types of fuels. ** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS. ** Heat preservation of rock cotton or polyurethane foaming, Heating system. ** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve…… ** Tube or tubeless tyres, off-road single tyre for bad roads. | |
