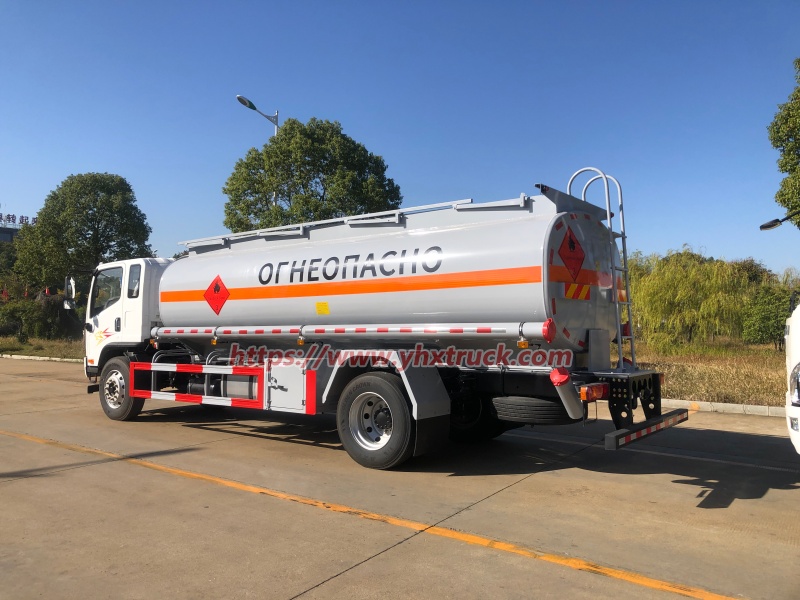

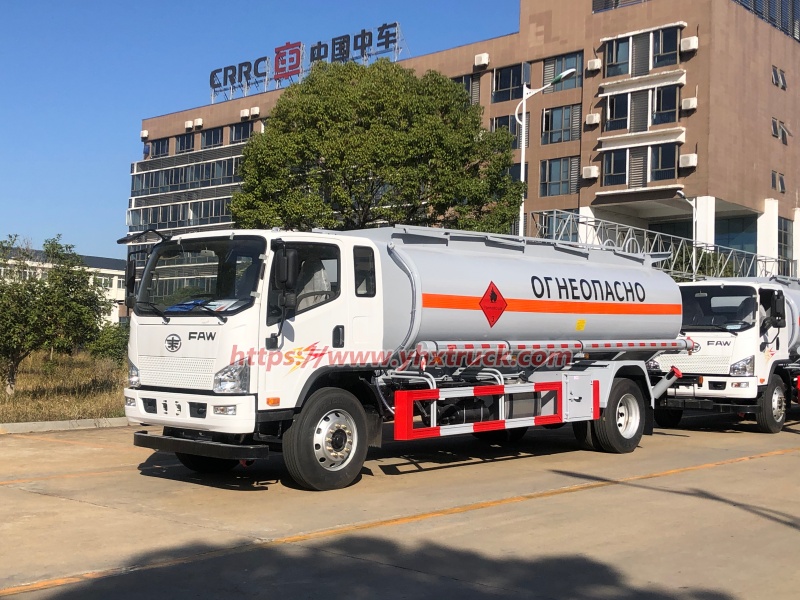

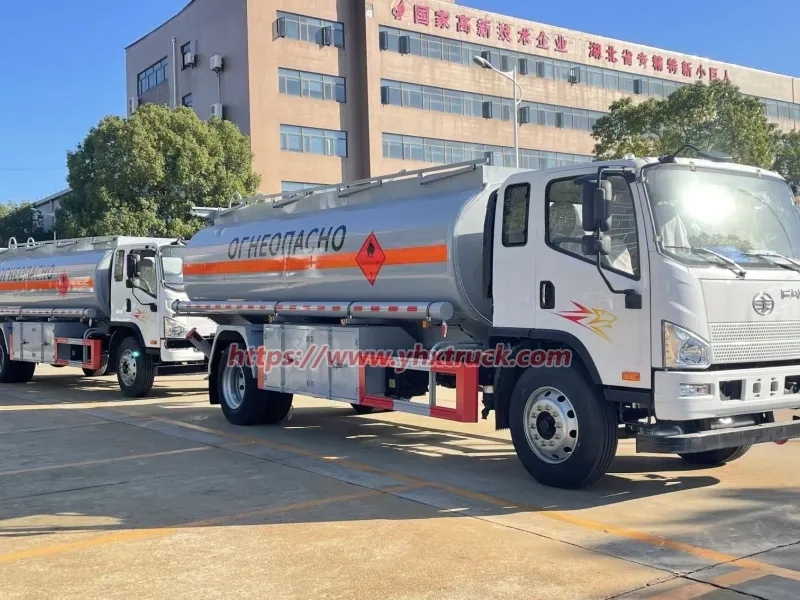

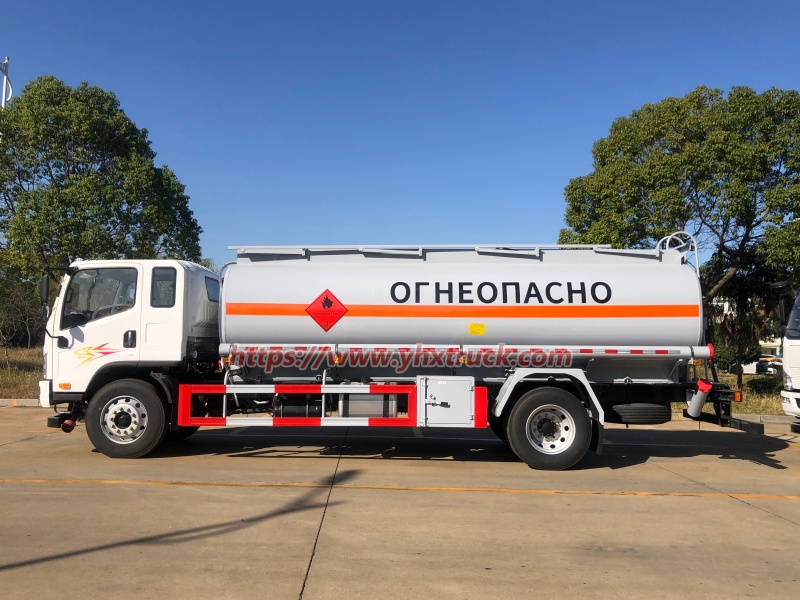

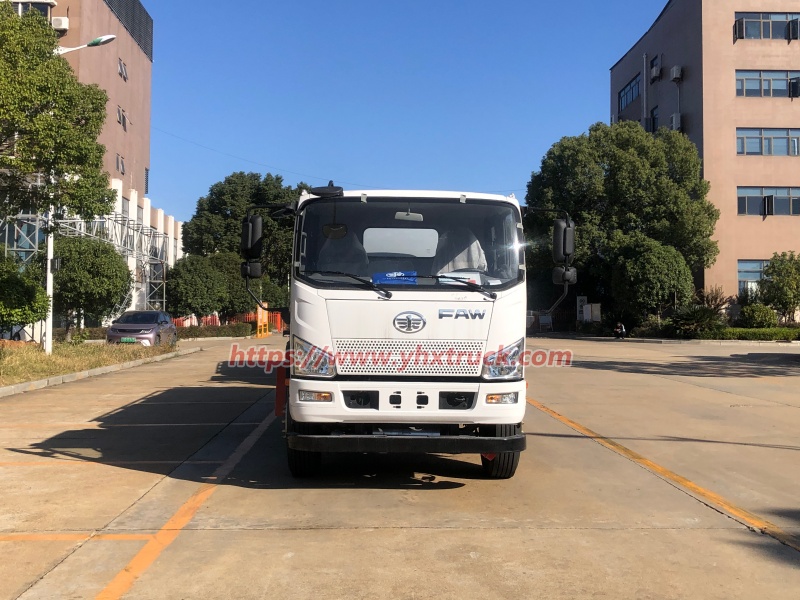

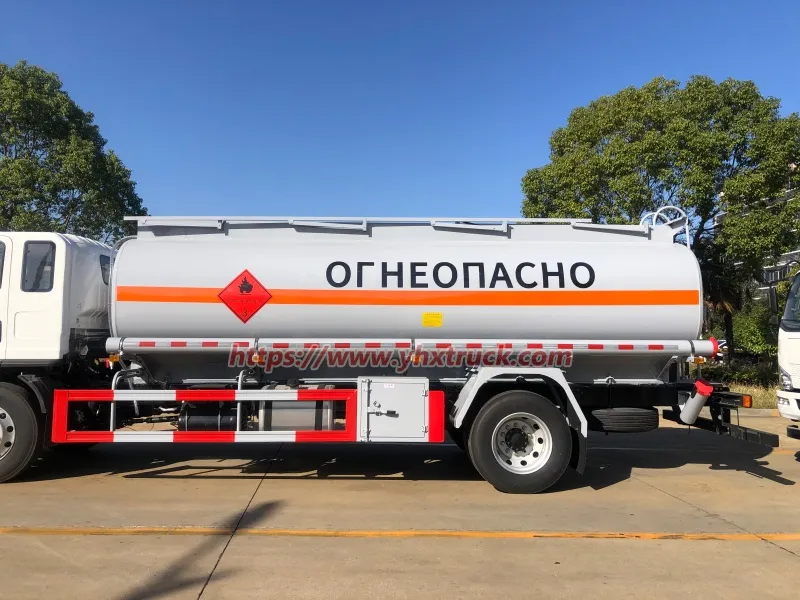

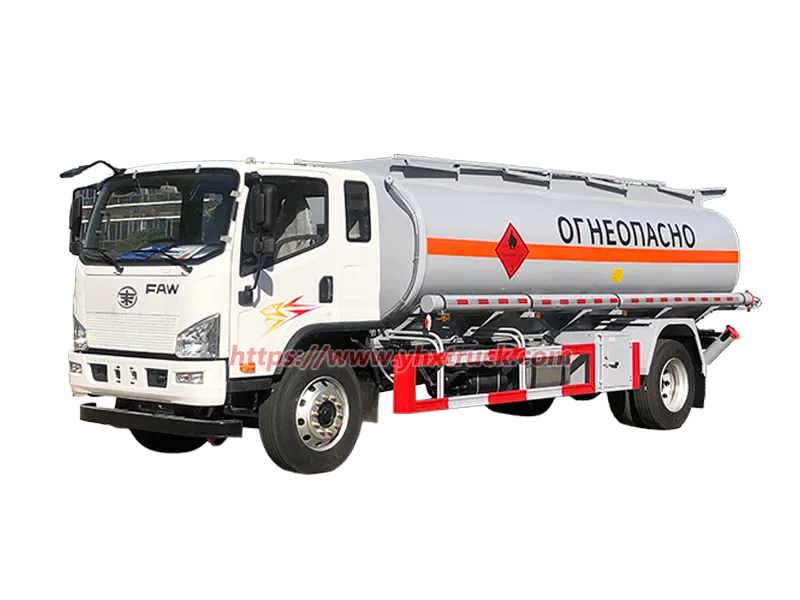

FAW Tiger VH 4×2 15m³ Fuel Refueling Truck

المنتجات ذات الصلة
YOU MAY BE INTERESTED IN THE FOLLOWING PRODUCTS...

Diesel tanker Truck Professional Introduction

Diesel tanker is a multi-purpose vehicle integrating bulk fuel haulage and onsite refueling service. Its tank boasts superior sealing performance together with sturdy sealing parts and full set integrated refueling assembly. It performs steady fuel loading, long-distance overland transit and fast fuel discharge, and refuels construction equipment directly even on uneven rugged road terrain.

Tank and chassis are integrally manufactured; inner baffles restrain fuel sloshing during travel to greatly improve driving stability. Multi-compartment option allows separate storage of various fuels, and flow meters can be retrofitted for accurate metered refueling to raise working precision and efficiency.

Anti-static and leakproof construction avoids fuel spillage and operational hazards.

Designed to carry petrol, diesel, crude oil and equipment lubricants, this diesel tanker is ideal for petrol station replenishment, mine fuel supply, rural fuel distribution, large project bulk fuel supply and onsite mobile refueling





Advantages:

Diesel tanker excellent mobility & wide coverage

It can reach construction sites, mines, remote areas and field work zones where regular gas stations are inaccessible, providing on-site fuel supply anytime and anywhere.

 High refueling efficiency

Equipped with integrated oil pumps and pipelines. No extra equipment is required, which greatly saves waiting time.

Suitable for bulk refueling

It can refuel vehicle fleets, construction machinery and generator sets in batches to improve overall working efficiency.

Strong emergency fuel supply

It can deliver emergency fuel quickly for broken-down vehicles and equipment running out of oil outdoors, ensuring uninterrupted operation.

Easy to operate & adaptable

Compact and integrated design for simple operation. It works stably even in narrow spaces and rough road conditions.

Reduce vehicle downtime

Vehicles no longer need to travel to gas stations and queue up, effectively improving operational productivity.








specifications list

Diesel tanker FAN Tiger VN 4x2 chassis (12000litter Capacity)

General

Chassis Brand

JIEFANG 4x2


Overall Dimension

8600X2500 X3100mm


GVW / Kerb Weight

18000kg /7470kg

Cab

Cab Capacity

FAN Tiger VN


Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel


Engine Brand

Weichai/Cummins Engine


Power

Weichai140HP/Cummins168HP


Emission Standard

Euro 5

Chassis

Drive Type

left hand drive


Transmission

WLY


Tyre Number

6speed


Tyre Specification

11R22.5 18PR


Wheelbase/No. of axle

4700

Superstructure

Capacity

12000litter


Material

Carbon steel


Standard Configuration:Elliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

Optional

 Optional configurations:Flow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.
