Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Sanitation Trucks
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview

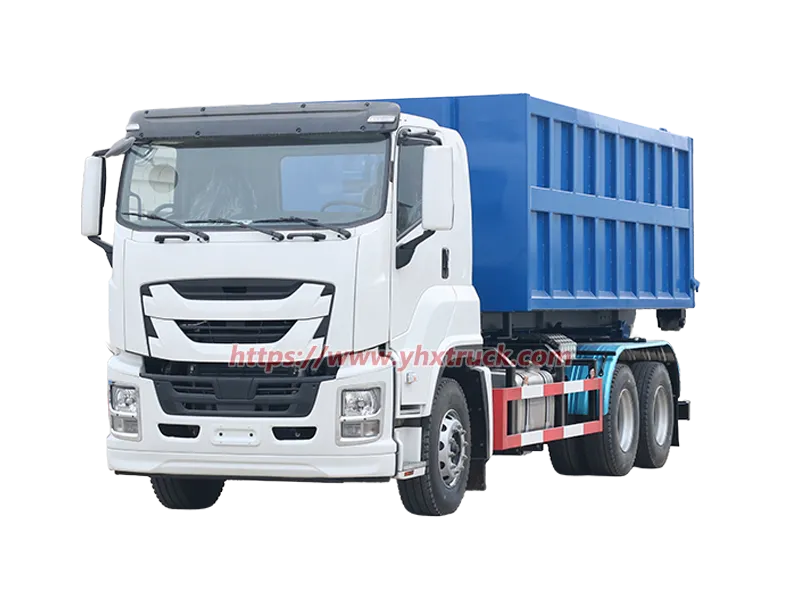

The Isuzu 6×4 hook lift garbage truck supplied complete with matched garbage container is a dedicated detachable container sanitation vehicle. The chassis is mature and reliable, with precise overall calibration for frequent waste collection and transfer tasks. It is fitted with a stable hydraulic hook arm system, which automatically finishes container hooking, lifting, loading, hauling and discharging without extra lifting equipment. The separable sealed container can be deployed separately at communities, commercial streets, factories and construction sites to store domestic waste, kitchen waste, sludge and construction debris. The 6×4 dual rear axle layout delivers sufficient load capacity and balanced driving stability, adapting to urban narrow lanes and suburban complex road conditions. The chassis and upper equipment are perfectly matched with standardized assembly, guaranteeing high attendance rate and stable continuous operation, suitable for municipal sanitation procurement and overseas export orders.
Core Characteristics & Key Details
Calibrated ISUZU 6×4 Heavy-duty Chassis
This hook lift sanitation vehicle adopts original Isuzu 6×4 heavy-duty chassis, specially calibrated and optimized for repeated waste collection and transfer scenarios. Equipped with dual rear axle structure, the chassis realizes even stress distribution, bringing powerful load-bearing capacity and balanced driving stability. Verified by massive global sanitation operation cases, the mature powertrain owns steady power output and low fuel consumption. With worldwide spare parts supply channels, it supports quick overseas after-sales maintenance, greatly lowering fleet operation risks for export projects.
Stable Automatic Hydraulic Hook Arm System
Matched with factory-tested integrated hydraulic hook arm system, the whole hydraulic assembly undergoes pressure resistance and leakage inspection before delivery. The linkage mechanism runs smoothly with sensitive response, realizing full-automatic container hooking, lifting, transportation and discharging. The whole loading and unloading process needs no external cranes or auxiliary mechanical equipment, simplifying on-site operation steps and improving daily working efficiency.
Supporting Fully-sealed Garbage Container
The complete-set matched garbage container adopts integral sealed welding technology with high structural rigidity. The optimized sealing groove and waterproof rubber strips achieve full leakage prevention, which thoroughly blocks sewage leakage, garbage scattering and odor diffusion. The detachable container supports independent placement at various waste collection points, and is compatible with multiple types of mixed wastes, covering daily household waste, catering sludge and construction waste.
Integrated Assembly & Easy Maintenance Design
Different from disorderly refitted sanitation vehicles, this vehicle adopts factory standardized integrated assembly. The Isuzu chassis, hydraulic hook arm and supporting garbage container are perfectly matched with unified debugging parameters. The whole vehicle features compact and firm body structure, exposed maintenance ports and modularized components, making daily inspection and parts replacement convenient, effectively cutting long-term maintenance time and cost.
Core Advantages
1. This Isuzu 6×4 hook arm garbage truck with garbage container boasts compact and solid structure, low breakdown frequency and convenient routine maintenance, cutting long-term operation expenses effectively.
2. It supports the one-truck multi-bin operation mode; one truck can circulate multiple containers to boost transfer efficiency and reduce total vehicle purchasing quantity.
3. The full sealed supporting container stops sewage leakage, waste scattering and odor escaping completely, eliminating secondary pollution and conforming to global environmental regulations.
4. A single driver can accomplish all lifting and unloading operations inside the cab, no ground helpers required, saving labor costs notably.
5. The vehicle features flexible maneuverability, outstanding road compatibility and long service life, standing as a cost-effective option for sanitation projects and bulk export business.
2. Working Principle
The whole vehicle consists of three major parts: Isuzu 6×4 heavy-duty chassis, automatic hydraulic hook arm system and matched sealed garbage container. After ignition, the power take-off connects the engine and hydraulic pump, converting chassis power into stable hydraulic pressure to supply power for hook arm actions.
The driver operates hydraulic control handles inside the cab to drive the hook arm, realizing automatic alignment, hooking and locking of the complete-set garbage container. Relying on 6×4 dual rear axle bearing performance, the truck finishes steady lifting, road hauling and automatic discharging without external auxiliary equipment.
Benefiting from separable container design, multiple supporting sealed garbage containers can be placed dispersedly at waste collection sites in advance for offline waste storage. After containers are fully loaded, the
Hook Lift Truck replaces empty and full containers cyclically to realize uninterrupted waste transfer. Standardized assembly ensures coordinated operation of chassis and upper devices, maintaining high attendance rate for long-duration continuous sanitation work.
3. Daily Application Scenarios
Municipal Sanitation: Urban daily domestic waste centralized collection, cross-station garbage transfer, official sanitation bidding projects
Commercial Blocks: Waste disposal for commercial streets, shopping malls and business districts, adapting to crowded narrow urban roads
Industrial Factories: Collection of factory daily waste, catering sludge and harmless solid residues
Construction Sites: Loading and transportation of construction debris, engineering sediment and decoration waste
Overseas Sanitation Projects: Full-set vehicle + container delivery, complete export certifications, suitable for bulk sanitation export orders
4. Comparison with Traditional Sanitation Trucks
Vs Ordinary Hook Lift Trucks (Without Container): Most mainstream hook lift trucks only deliver vehicle body, requiring buyers to purchase extra garbage containers with mismatched size and poor sealing. This full-set vehicle supports one-stop delivery with matched containers, realizing plug-and-play operation, saving extra procurement and refitting cost.
Vs Fixed-box Garbage Trucks: Traditional integrated garbage trucks cannot separate bins, needing repeated round trips for unloading, resulting in low transfer efficiency. This separable container type realizes fast bin replacement, boosts transportation efficiency via one-truck multi-bin mode, and cuts fleet quantity.
Vs Non-standard Refitted Sanitation Trucks: Irregular refitted vehicles have mismatched chassis and hydraulic parts, plus simple non-sealed bins, causing serious sewage leakage. This factory integrated vehicle adopts calibrated assembly and full-sealed container, complying with global environmental protection standards, adapting to overseas official inspection.
ISUZU Hook lift gabage truck 6x4 chassis(20ton Lifting Capacity) |
General | Chassis Brand | ISUZU 6x4 |
| Overall Dimension | 8640X 2540 X 3100mm |
| GVW / Kerb Weight | 25,000kg / 14250 kg |
Cab | Standard roof | Isuzu new VC61 grade |
| Air Conditioner | W/ air conditioner |
Engine | Engine Model | 6UZ1-TCG61/6HK1-TCG60 |
| Engine Brand | Isuzu |
| Max Power | 380/279HP |
| emission standard | Euro 5 |
Transmission | Transmission Brand | Shaanxi Fast |
| Gear Configuration | 9-speed |
Chassis | Axle Capacity | Front axle 6.3 tons, rear axle 13–20 tons |
| Tire Specification | 295/80R22.5 18PR |
Superstructure | Lifting Capacity | 20ton |
| Waste Box Material | Carbon steel |
| Mechanical hook arm, subframe, locking mechanism, hydraulic system, control and safety protection components |
5. Buying Guide
For overseas municipal sanitation departments, environmental contractors and sanitation fleet buyers, confirm core configurations before bulk procurement:
Genuine Calibrated Isuzu 6×4 Chassis: Original dual rear axle chassis, optimized for sanitation working conditions, optional multi-country emission standards, global spare parts supply.
Complete-set Matched Garbage Container: Factory supporting sealed bin, unified assembly parameters, no secondary modification needed, anti-leakage and odor-proof.
Stable Integrated Hydraulic System: Pre-pressure-tested hydraulic hook arm, smooth linkage action, low failure rate, suitable for frequent repeated operation.
Labor-saving Cab Operation Design: Centralized internal control system, single-driver independent operation, cutting daily labor expenditure.
Full Export Qualification: One-stop vehicle + container export documents, supporting customs clearance and government sanitation bidding worldwide.
6. Operation and Maintenance Tips
Standardized operation and routine maintenance can stabilize hydraulic performance, reduce breakdown frequency and prolong chassis service life:
6.1 Daily Operation Specifications
Check hydraulic oil status, container sealing strips and chassis brake system before daily startup
Park on horizontal ground before hooking containers to avoid heavy-load rollover
Match hook arm with container hanging points precisely to prevent hooking deviation and component abrasion
Operate hydraulic levers steadily, forbid sudden lifting to protect matched hydraulic components
Check container sealing and locking condition before driving to avoid sewage leakage and garbage spilling
6.2 Regular Maintenance Advice
Replace dedicated hydraulic oil every 12 months to guarantee stable lifting output
Clean container inner wall regularly, maintain sealing strips elasticity to prevent sewage leakage
Lubricate hook arm movable joints monthly to reduce operation abrasion and abnormal noise
Inspect container welding lines regularly, repair rusted parts to extend bin service life
Abide by Isuzu official chassis maintenance standards to guarantee long-term driving reliability
7. Frequently Asked Questions
Q1: Official export name
A1: Standard export names: Hook Lift Garbage Truck with Garbage Container, Isuzu 6×4 Detachable Bin Sanitation Truck, Full-set Hook Arm Waste Collection Vehicle.
Q2: Waste transportation scope
A2: It can carry domestic waste, kitchen waste, sludge and construction debris, suitable for urban, commercial, industrial and construction sanitation scenarios.
Q3: Why adopt 6×4 dual rear axle design?
A3: The dual rear axle structure disperses heavy-load pressure, improving bearing capacity and driving balance. It adapts to narrow urban roads and bumpy suburban roads, avoiding full-load rollover risks compared with 4×2 light-duty models.
Q4: Is container customization available?
A4: Yes. We support customized bin size, spraying color, hydraulic lifting tonnage and anti-corrosion treatment to match local sanitation rules.
Q5: Does the vehicle meet overseas environmental requirements?
A5: The matched full-sealed garbage container cuts sewage and odor pollution, fully complying with international environmental protection laws; we can provide environmental test reports for customs clearance.
Conclusion
Isuzu 6×4 Hook Lift Garbage Truck Complete with Garbage Container is a one-stop exported sanitation solution tailored for global municipal environmental projects. Integrated with mature Isuzu 6×4 chassis, stable hydraulic hook arm and factory-matched sealed garbage container, the whole vehicle realizes automatic, labor-saving and pollution-free waste collection and transportation.
Different from single-body sanitation vehicles, this full-set vehicle delivers truck plus supporting containers, eliminating extra procurement and refitting cost for overseas buyers. Benefiting from one-truck multi-bin mode and full-sealed environmental design, it reduces fleet operating cost and secondary pollution risks. Featuring low failure rate, easy maintenance and complete export certification, it is high-cost-performance sanitation equipment for government bidding, environmental contractors and bulk overseas export orders.
