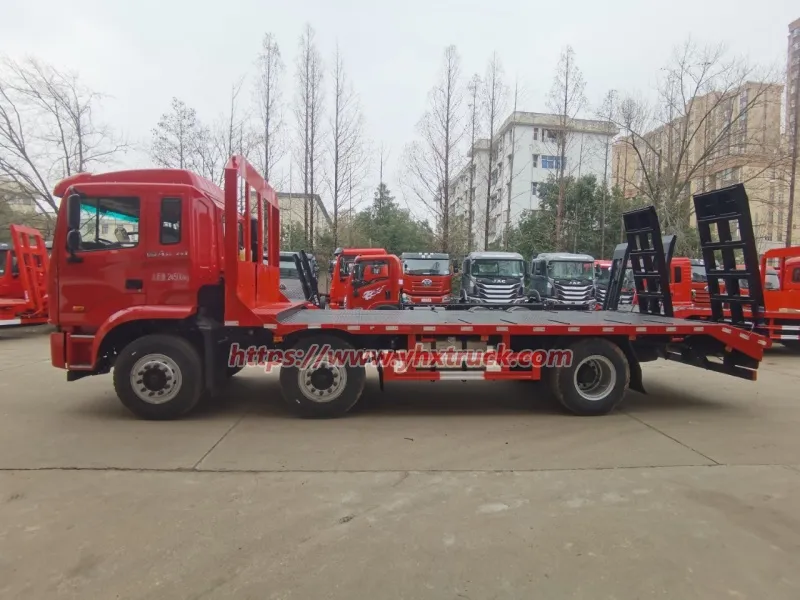

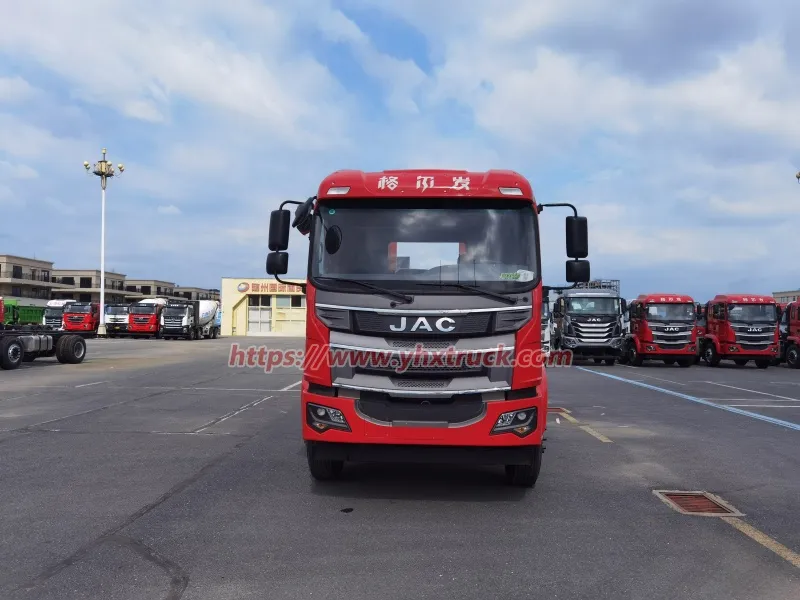

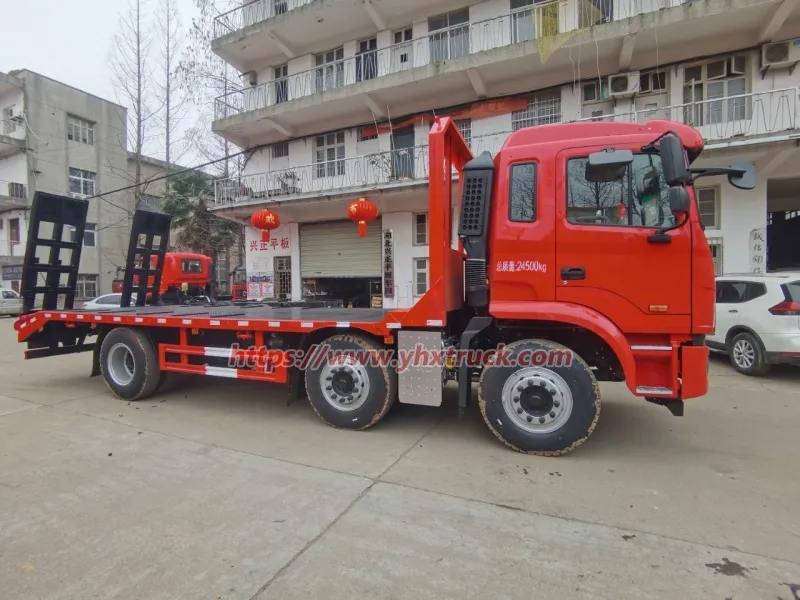

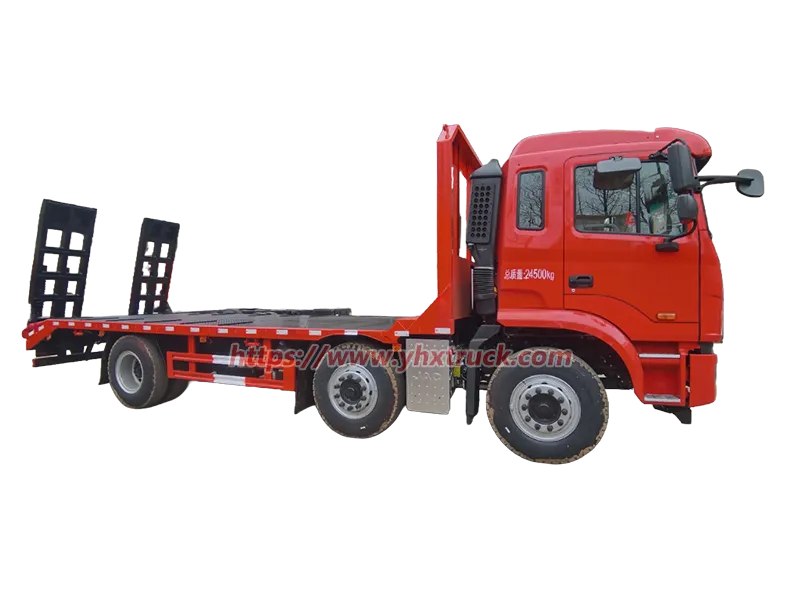

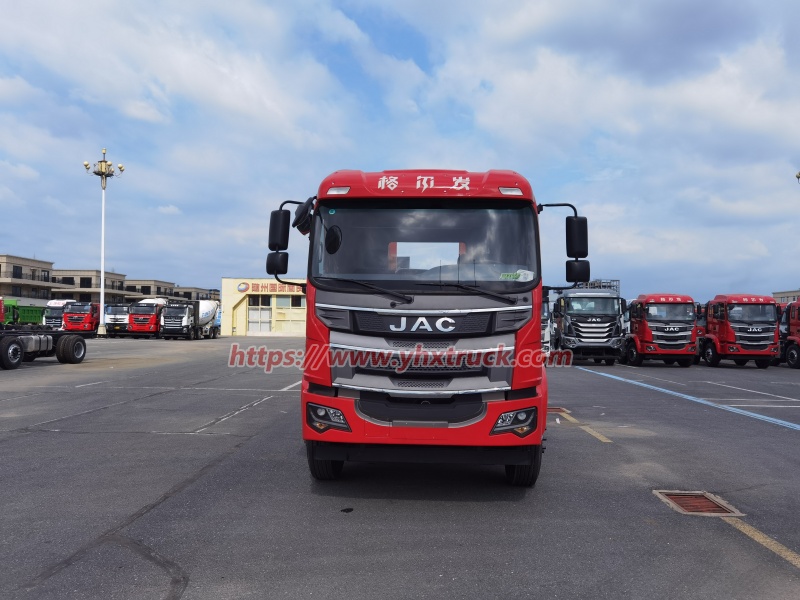

JAC 6×2Flatbed Truck
· Overall vehicle length: 9.7–10.5 m; effective flatbed length:7.3–8.3 m, short wheelbase option available. Much smaller turning radius than 8×4 trucks for easy U-turn on narrow rural roads and construction sites.
· Vehicle height 3.1–3.2 m, easily passes height restriction of 2.8 m; low deck height around 1.27 m ensures gentle slope for safe loading/unloading of tracked machinery.
· · Fuel saving: Equipped with 220/240HP engine + Fast 8-speed transmission plus fuel-saving EP switch, fuel consumption 16–20 L/100km, saving 4–7L diesel per 100km vs 4-axle models.
· Cheaper toll fee: Toll standard for 3-axle vehicle is 15%–25% less than 4-axle trucks on national & provincial highways.
· Economical maintenance: Only 3 axles & 10 tires; spare parts and tyre replacement cost around 30% lower, widely available accessories for quick repair.
JAC 6×2Flatbed Truck (20T ) | ||
General | Chassis Brand | JAC |
Overall Dimension | 9800X 2550 X3450 mm | |
GVW / Kerb Weight | 24500kg / 14805kg | |

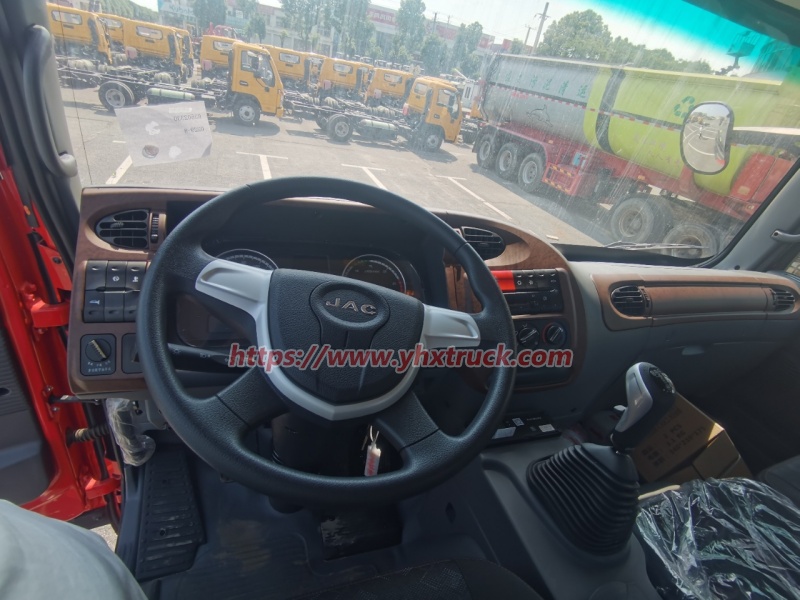

Cab | Cab Capacity | 2persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | YUCHAI ENGINE | |
Power | 245Hp (180 KW) | |
Displacement | 6234ml | |
Emission Standard | Euro 4 Euro 5 | |

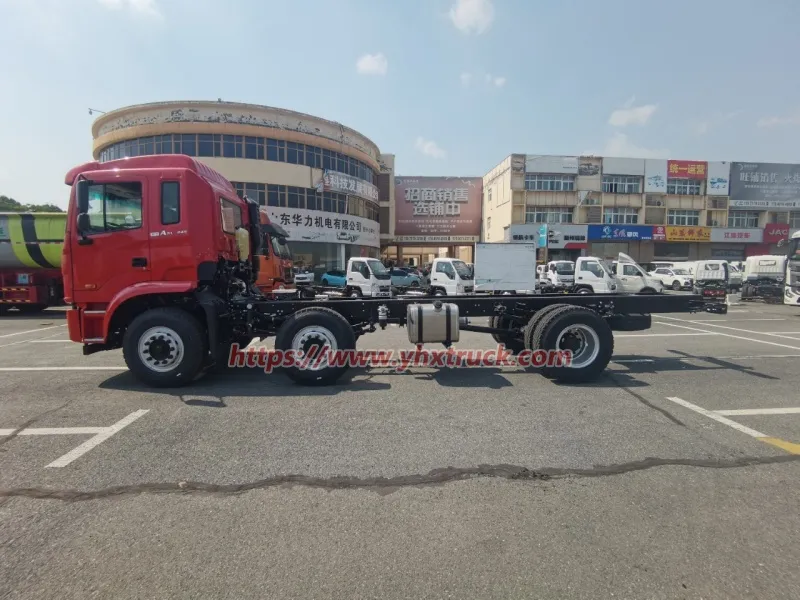

Chassis | Drive Type | left or right hand drive |
Transmission | FAST 8JS85E Transmission | |
Wheelbase/No. of axle | 1950+3500 | |
Tyre Specification | 10.00R20 18PR | |
Tyre Number | 8tyres and 1 spare tyre | |
Max Speed | 89 km/h | |
Paint | Metallic paint | |
5T front steering axles & 10T heavy-duty rear axles | ||
Superstructure | Capacity | 20T |

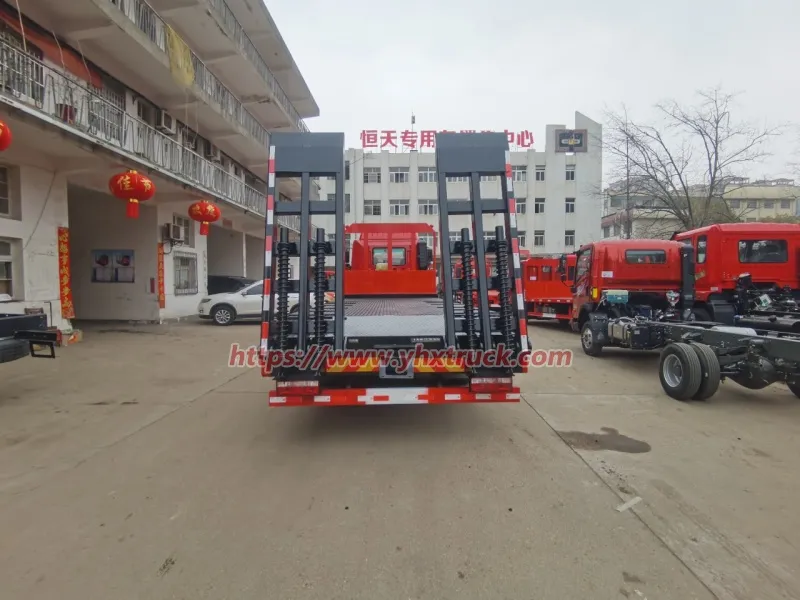

Standard Configuration ：6mm patterned steel floor, 120 cross members, manually telescopic to 3m, double-spring ramp. | ||
Optional | Optional configurations：The platform adopts hydraulic telescopic and hydraulic ramp, and non-ramp version can be equipped as an option. | |
