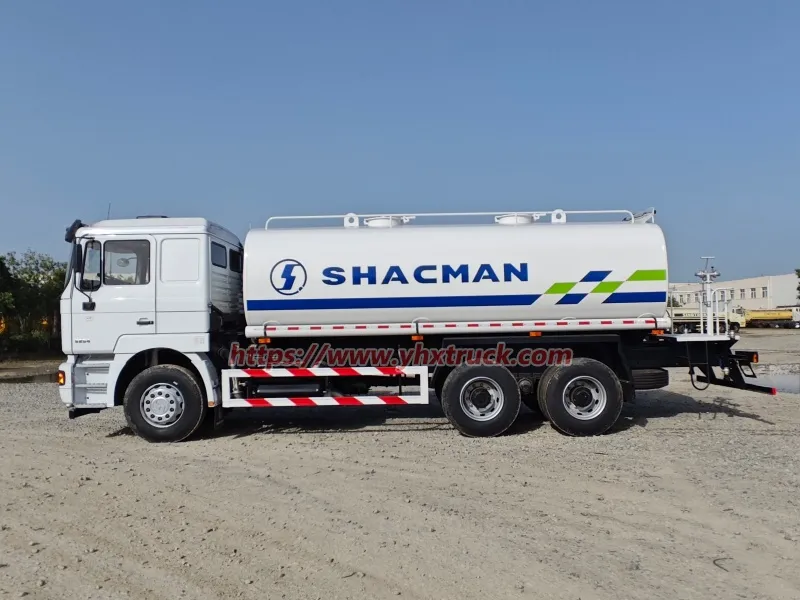

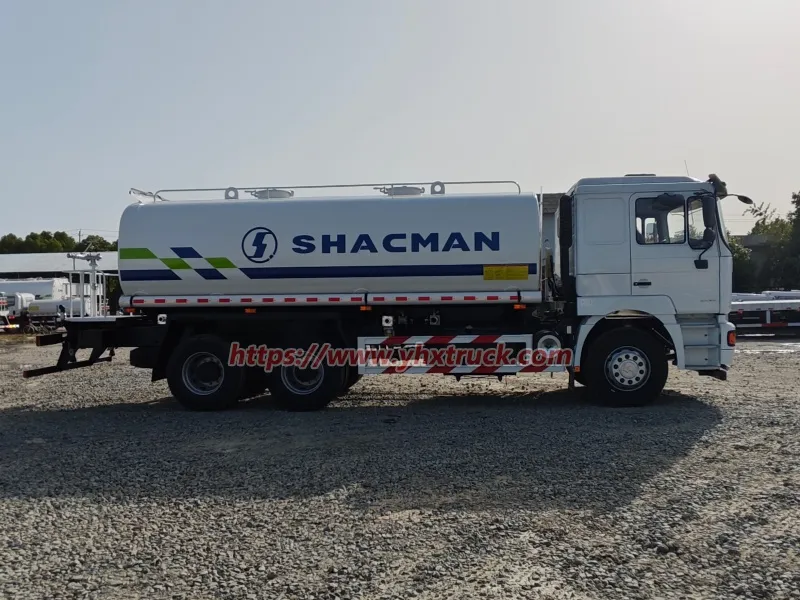

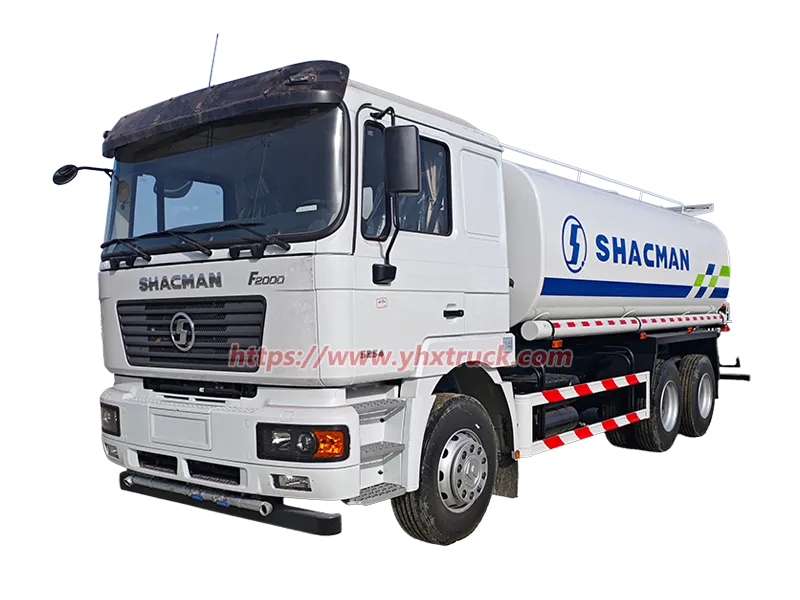

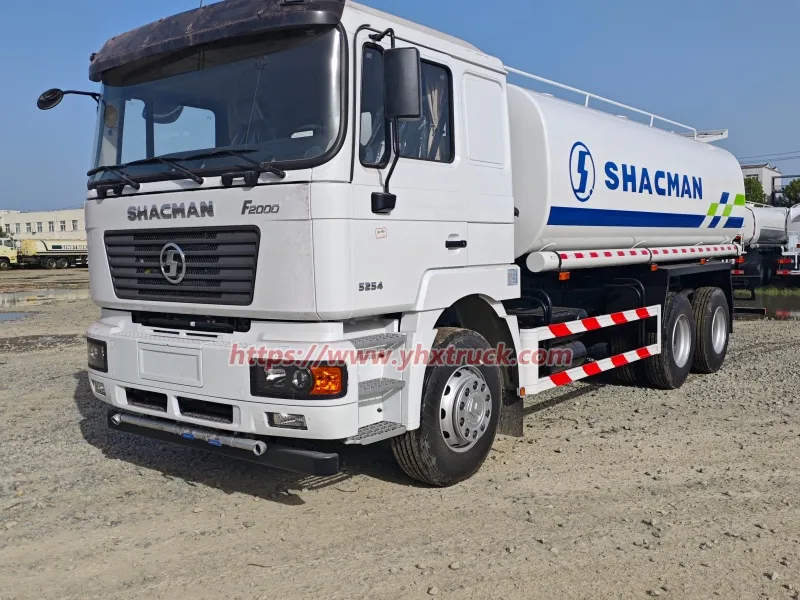

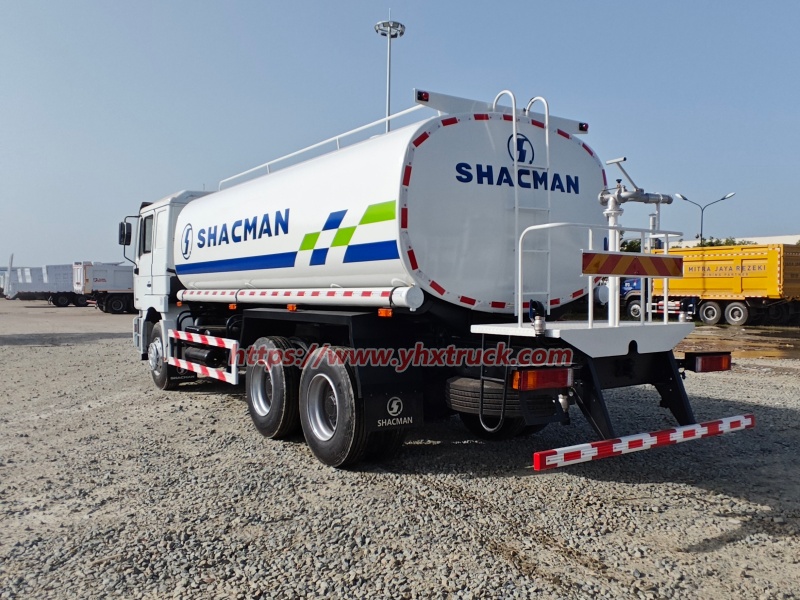

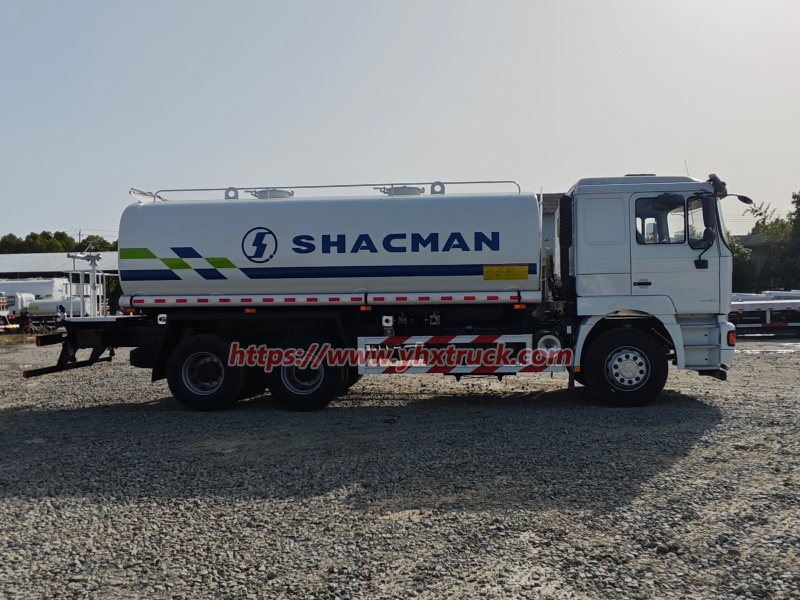

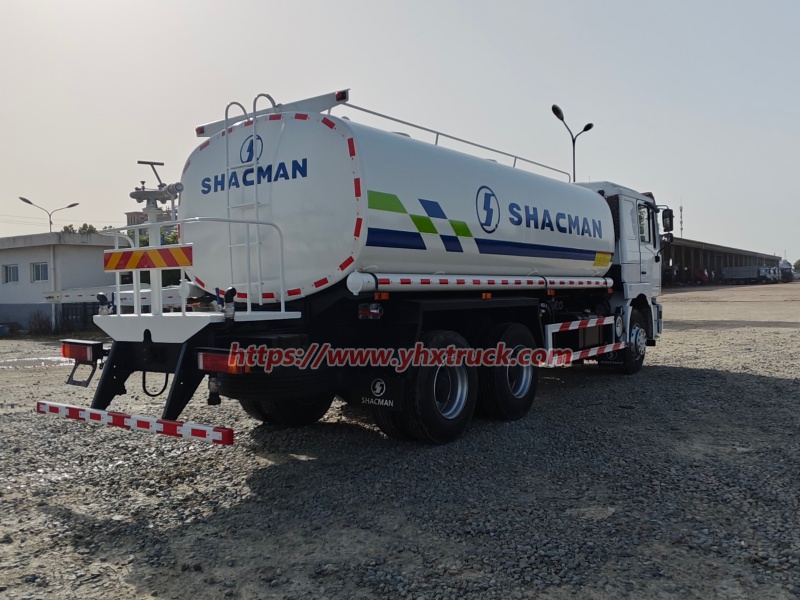

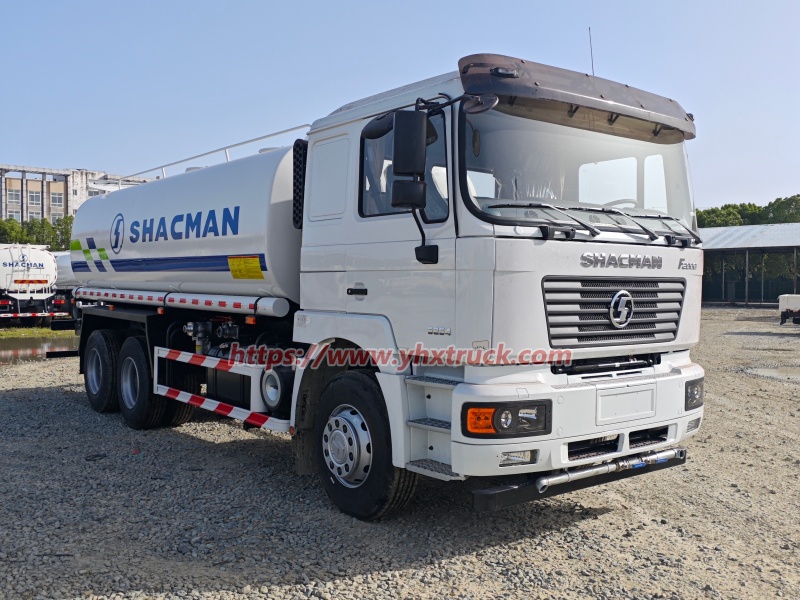

Shaanxi F2000 6x4 Heavy Duty Water Truck

Heavy Duty Water Truck Professional Introduction

 The heavy duty water truck is a large-scale, high-load sanitation and engineering water transport vehicle. Equipped with an extra large anti-corrosion water tank and high-pressure water pump system, it supports front flushing, rear spraying and side spraying functions. Built with heavy-duty chassis and reinforced structural parts, the vehicle features strong bearing capacity and stable driving performance. It is widely used for large-area road watering, construction site dust control, mining area water supply, farmland irrigation and emergency water delivery. With powerful power output and optimized water pipeline design, the heavy duty water truck can maintain stable and continuous working performance under heavy-load and harsh working conditions.



Advantages

The heavy duty water truck owns super large water capacity, which greatly reduces water filling times and improves long-distance and large-area operation efficiency. It adopts heavy-duty reinforced chassis and high-strength accessories, offering strong load-bearing performance and excellent durability to adapt to various complex and harsh road conditions. Equipped with multi-functional spraying modes, it can complete road cleaning, watering and dust suppression work efficiently. The whole vehicle runs stably with low failure rate, bringing stable performance and low maintenance cost for long-term engineering and municipal use. With reliable power system and strong cross-country performance, it is the ideal choice for mine, construction site, municipal engineering and large-scale greening projects.








specifications list

Heavy Duty Water Truck Shaanxi F2000 6x4 chassis (20000liter)

General

Chassis Brand

Shaanxi F2000 6x4


Overall Dimension

10500 X 2550 X 3200 mm


GVW / Kerb Weight

25,000kg / 10250 kg

Cab

Main Seat

Hydraulic main seat


Air Conditioner

W/ air conditioner

Engine

Engine Model

WP10.300E22


Engine Brand

Weichai


Max Power

300 Horsepower


Nominal Speed

2200 r/min


Max Torque

1240 N·m


emission standard

Euro II /National

Transmission

Transmission Brand

Fashant


Gear Configuration

9 forward gears, 1 reverse gear

Chassis

Suspension

Front and rear multi-leaf springs, four main leafs and four horseleafs


Tire Specification

12.00R20, with one spare tire

Superstructure

Waste Box Capacity

20000liter


Waste Box Material

Carbon steel


Standard Configuration:Professional water pump ,Front spray, rear spray & side spray

High-level sprinkler & water cannon ,Self-priming and water discharging system

Chassis Additional Components

 Optional configurations:Fog cannon available
