Shacman 6×4 Integrated Tow-Lift Wrecker – Ultra Heavy-Duty Rollover Correction & Heavy Truck Recovery Rescue Vehicle
Introduction
Global highway heavy vehicle rollover accidents, stranded large trucks and scrap heavy vehicle transportation create extremely high requirements for rescue equipment load capacity and comprehensive functions. Conventional single-axle or 3-axle multi-functional wreckers adopt thin frames and light rear axles, unable to complete integrated rollover righting, heavy lifting and synchronous towing operations at one time. Enterprises have to deploy separate lifting cranes and medium-duty tow trucks simultaneously, resulting in high procurement investment, complicated vehicle scheduling and low emergency rescue efficiency. To solve the pain points of ultra-heavy road rescue, the export-grade Shacman 6×4 integrated tow-lift wrecker is launched as an all-in-one heavy recovery solution. It adopts an exclusive integrated tow-lift structure that realizes synchronous lifting, lifting frame support and vehicle towing. This full-range heavy multi-purpose wrecker covers core operations including rollover accident correction, heavy-duty truck recovery and scrap heavy vehicle transfer. Equipped with powerful 350/400HP 6-cylinder power unit, triple-layer reinforced frame and dual 13-ton heavy rear axles, it delivers stable 20-ton rated tow-lift load capacity, with overall performance far exceeding single-axle and 3-axle multi-functional wreckers, perfectly matching round-the-clock highway heavy accident disposal and large vehicle salvage work.
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Models
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview

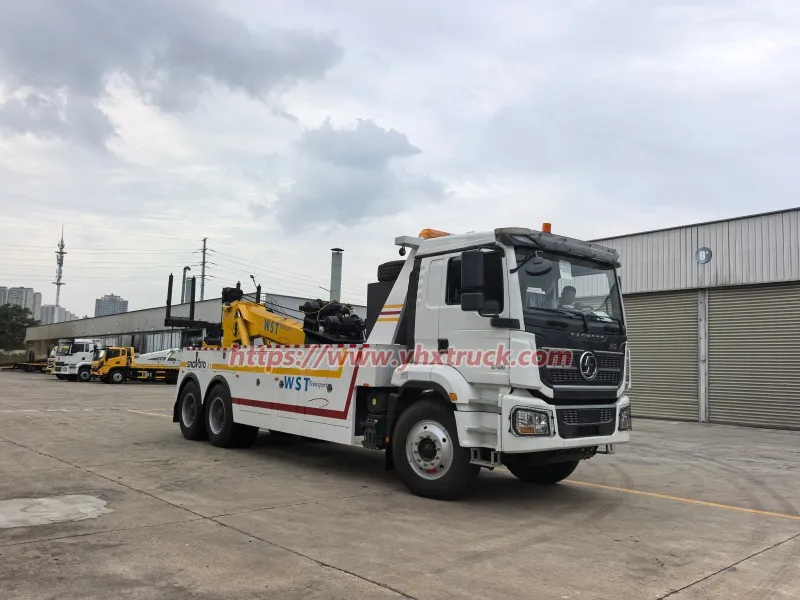

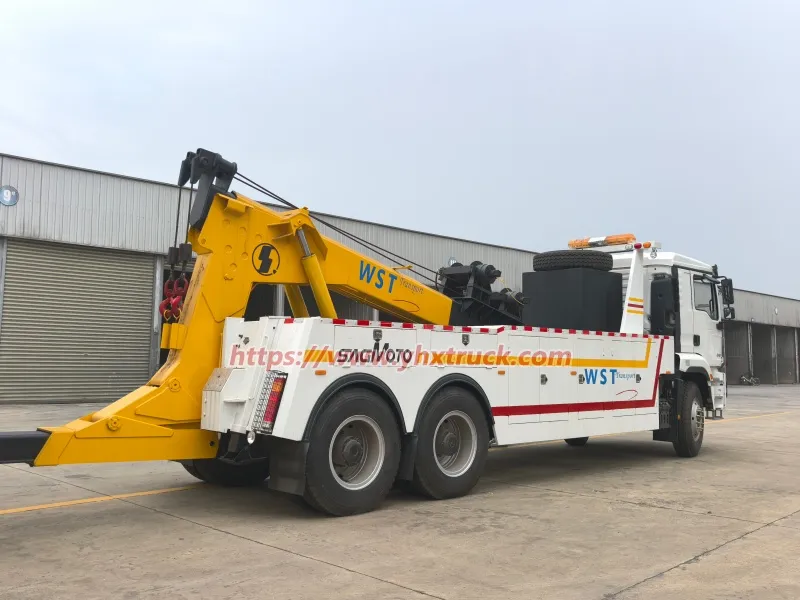

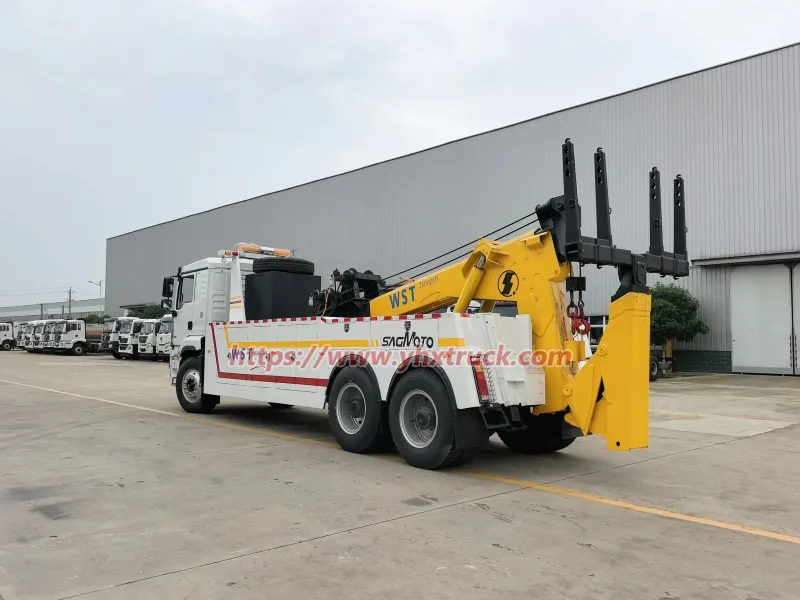

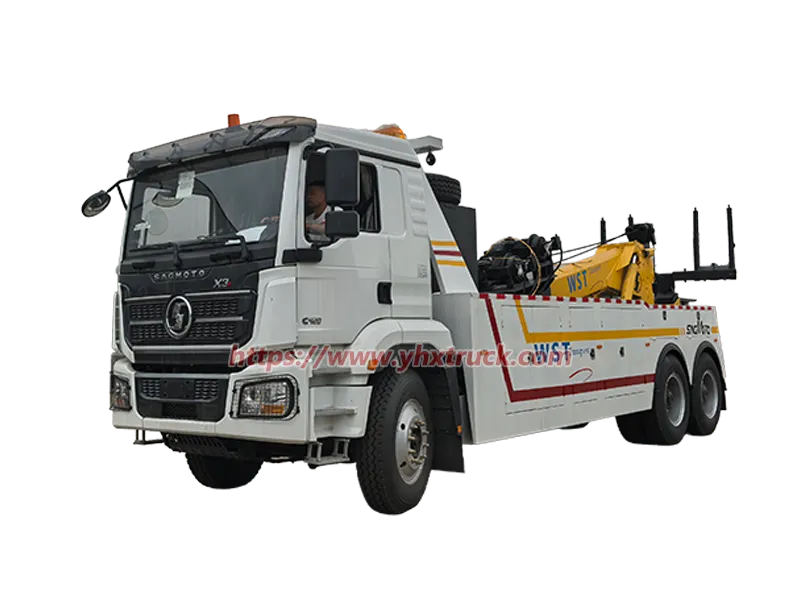

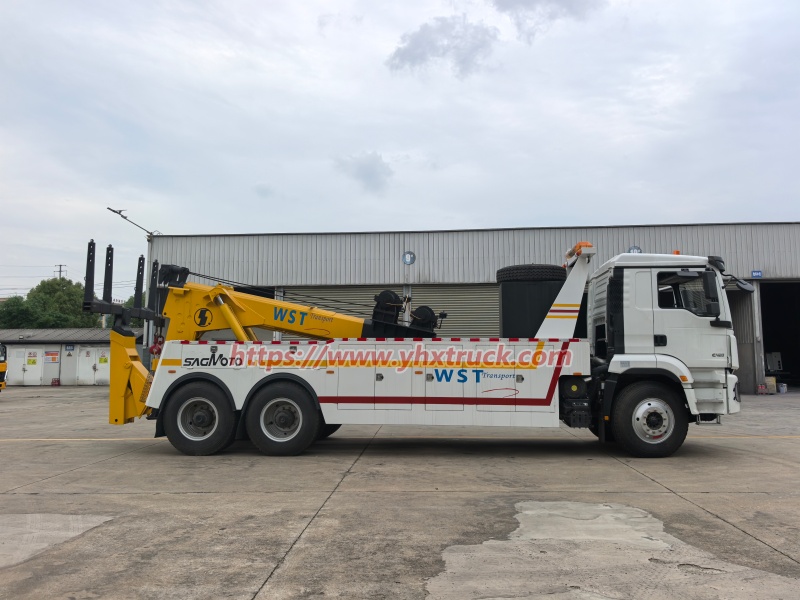

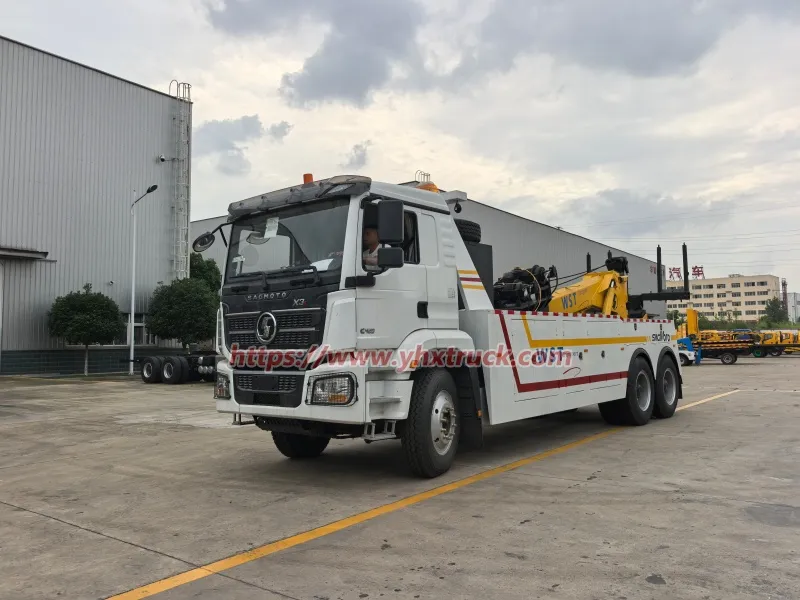

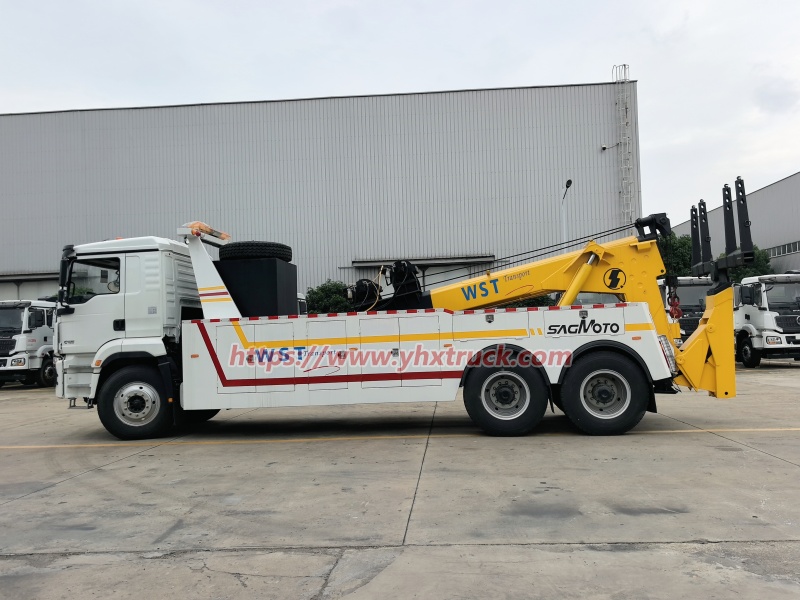

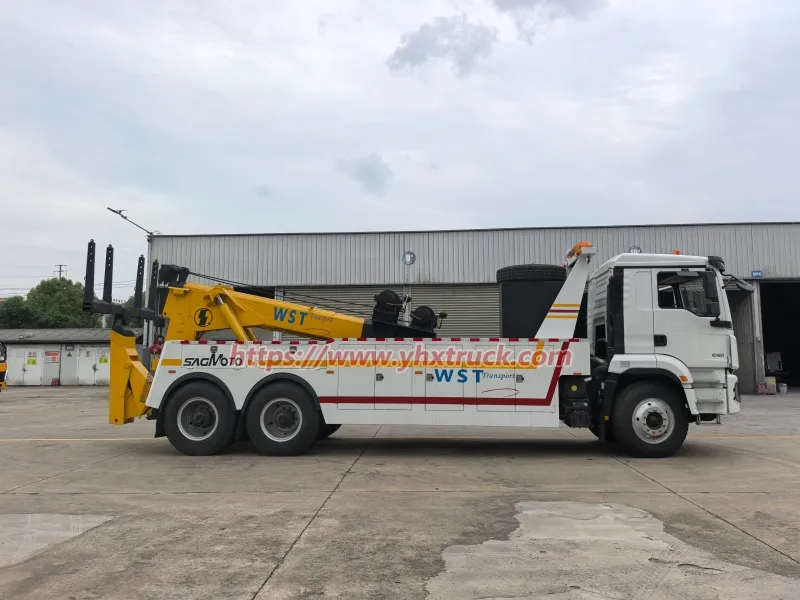

Shacman 6×4 integrated tow-lift wrecker is a top-tier ultra-heavy multi-purpose road recovery vehicle. Its exclusive integrated tow-lift structural design supports synchronous lifting, lifting frame supporting and vehicle towing operations. This all-round heavy-duty wrecker can independently complete rollover vehicle righting, damaged heavy truck recovery and scrap heavy cargo vehicle transportation tasks. The whole vehicle is equipped with optional 350HP and 400HP 6-cylinder high-torque power assembly, matched with triple-layer reinforced integral frame and dual 13-ton heavy-duty rear axles, forming a solid load-bearing system that supports stable 20-ton tow-lift working load, with comprehensive strength vastly superior to single-axle and three-axle ordinary multi-functional
Wrecker Trucks.
The vehicle supports diversified personalized configuration to satisfy differentiated heavy rescue demands: clients can select 20-ton or 25-ton maximum lifting capacity, paired with optional 350/400HP power output. A full set of auxiliary functional accessories is available for matching, including wireless remote control system, high-brightness all-weather rescue work lights and widened anti-sink outrigger support pads to build a customized exclusive heavy recovery wrecker. All load-bearing boom and force-bearing support brackets are fabricated from 10mm high-strength thick steel plate; matched with imported high-pressure integrated hydraulic assembly and dual heavy-duty hydraulic winches, the hydraulic and mechanical structure maintains low deformation and zero oil leakage under long-duration continuous heavy-load operation, effectively cutting long-term equipment maintenance and parts replacement costs.
The whole vehicle adopts original Shacman 6×4 dual-rear-axle heavy commercial chassis, with triple-layer reinforced frame greatly improving anti-torsion and anti-bending performance during eccentric heavy lifting. The dual 13-ton rear axles evenly disperse ultra-heavy load, eliminating chassis tilt and rollover risks during rollover correction and full-load towing. The factory integrated tow-lift superstructure undergoes overall finite element stress calibration, with seamless matching between upper rescue equipment and chassis load-bearing points, avoiding structural damage caused by later secondary refitting. Independent dual hydraulic loops control lifting frame and traction winch separately, enabling non-interfering simultaneous lifting and towing operations to shorten on-site accident disposal time significantly.
Different from split-function heavy rescue vehicles, this integrated tow-lift wrecker merges three core functions into one single unit, eliminating the need to coordinate multiple engineering vehicles for large accident rescue. It expands service categories for rescue operators, improves daily vehicle utilization rate, shortens the capital return cycle and brings more stable operating income for highway emergency teams and professional heavy salvage companies.
Core Product Advantages
All-in-One Integrated Tow-Lift Structure：Supports synchronous lifting, lifting frame support and vehicle towing; realizes rollover correction, heavy truck recovery and scrap vehicle transport
Ultra-Heavy Load-Bearing Chassis Hardware：350/400HP 6-cylinder power, triple-layer reinforced frame, dual 13T rear axles, stable 20-ton tow-lift rated load
Superior Heavy-Duty Performance：Overall bearing and lifting capacity far stronger than single-axle and 3-axle multi-functional wrecker trucks
High-Strength Load-Bearing Components：10mm thick high-strength steel boom & brackets, strong anti-deformation performance under long heavy workloads
Premium Imported Hydraulic System：Imported hydraulic assembly + dual heavy-duty winches, anti-leakage design, low failure rate and reduced maintenance cost
Full Customization Support：Optional 20/25ton lifting tonnage & 350/400HP power; customizable remote control, work lights and wide outrigger pads
Multi-Scenario Heavy Rescue Capacity：Suitable for highway rollover accidents, heavy vehicle breakdown salvage and long-distance scrap heavy vehicle transportation
2. Working Principle
The outstanding ultra-heavy comprehensive rescue performance of Shacman 6×4 integrated tow-lift wrecker relies on triple-layer reinforced frame dual 13-ton rear axle bearing system and dual independent split hydraulic linkage circuit, realizing simultaneous coordinated operation of lifting frame jacking, heavy-load lifting and faulty vehicle traction towing.
The optional 350/400HP 6-cylinder high-torque engine outputs sustained sufficient power, which is transmitted to the dedicated rescue hydraulic power take-off. The hydraulic system is divided into two mutually independent pressure loops: one circuit controls the integrated tow-lift boom and support brackets to complete rollover vehicle correction, full-body jacking and heavy component lifting; the other circuit drives dual heavy-duty hydraulic winches to perform traction dragging of stuck, damaged and scrap heavy vehicles, with no hydraulic pressure interference during synchronous operation.
The 10mm high-strength steel boom and brackets evenly disperse heavy lifting stress to the triple-layer reinforced frame and dual 13-ton rear axle load-bearing points, effectively preventing local structural bending and fracture. The imported hydraulic assembly is equipped with built-in constant pressure protection valves, automatically stabilizing system pressure to avoid sudden pressure surges and oil leakage under transient overload working conditions. Widened outrigger pads expand the ground contact area to disperse overall vehicle gravity, greatly enhancing operational stability during all-weather round-the-clock heavy rescue. The optional wireless remote control enables off-board long-distance operation, separating operators from dangerous accident zones and improving overall rescue safety.
3. Daily Application Scenarios
Designed exclusively for ultra-heavy highway accident disposal and heavy vehicle salvage, this Shacman 6×4 integrated tow-lift wrecker covers all major large vehicle rescue scenarios, widely deployed by global highway administration bureaus, national road emergency response teams and professional heavy salvage enterprises:
Expressway rollover accident emergency rescue: Rollover Semi-trailer, heavy Cargo Truck and large coach correction, jacking and fixed-point recovery
Highway stranded heavy vehicle salvage: Mud-trapping, cliff-edge and collision-damaged heavy truck lifting and towing clearance
Scrap heavy vehicle centralized transportation: End-of-life large trucks, buses and engineering machinery long-distance hauling and disposal
All-weather round-the-clock emergency rescue: Cross-region large vehicle breakdown salvage, post-disaster heavy traffic obstacle removal
Municipal and road engineering auxiliary operation: Heavy road construction machinery lifting transfer, large traffic barrier hoisting and cleaning
Compared with light and medium multi-functional wreckers limited to passenger car and light truck recovery, this ultra-heavy 6×4 model fills the market gap of integrated rollover correction and heavy-load synchronous towing. One single truck replaces multiple sets of separate lifting and towing equipment, simplifying fleet management and greatly boosting emergency accident response speed.
4. Comparison with Traditional Models
Compared with single-axle and 3-axle multi-functional wreckers: Conventional light and medium multi-purpose wreckers adopt single-layer thin frames and light-duty rear axles, with limited lifting load and weak anti-torsion capacity. They cannot simultaneously complete heavy vehicle rollover righting and synchronous towing operations, prone to frame deformation and hydraulic oil leakage under long heavy workloads. In contrast, Shacman 6×4 tow-lift wrecker is equipped with triple-layer reinforced frame, dual 13-ton rear axles and 20-ton standard tow-lift capacity, with overall load-bearing and lifting performance far exceeding ordinary multi-axle light rescue vehicles.
Compared with separate deployment of crane and medium wrecker: Independently purchasing lifting cranes and medium tow trucks requires double procurement budgets, doubled fuel and maintenance costs, plus two groups of operating staff labor expenditure. Complex cross-vehicle coordination delays the golden rescue window for highway accidents. This all-in-one Shacman integrated tow-lift wrecker integrates lifting and towing functions, capable of independently finishing all heavy rescue tasks with fewer personnel and significantly reduced comprehensive operating costs.
Compared with non-standard secondary refitted heavy wreckers: Most aftermarket refitted heavy recovery vehicles use thin ordinary steel booms and low-quality domestic hydraulic fittings, suffering from frequent bending deformation and oil leakage under continuous heavy work, with high long-term maintenance costs. This factory-standard Shacman wrecker adopts 10mm high-strength steel load-bearing parts and original imported hydraulic assembly matched with dual heavy winches, delivering stable long-term performance and low failure rate, while supporting flexible personalized configuration to match diversified overseas working environments.
Shacman 6×4 integrated tow-lift wrecker |
General | Chassis Brand | Shacman |
| Overall Dimension | 10680/9980 × 2550 × 3780mm |
| Flatbed size | / |
| GVW / Kerb Weight | 25000kg / |
Cab | Cab Capacity | 3persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | Weichai ENGINE |
| Power | 350Hp (257 KW) |
| Displacement | 9500ml |
| Emission Standard | Euro 3/4/5 |
Chassis | Drive Type | left or right hand drive |
| Transmission | Fast 10-speed manual with heavy-duty PTO |
| Wheelbase/No. of axle | 4650+1350 |
| Tyre Specification | 11.00R20 18PR |
| Tyre Number | 11 |
| Max Speed | 89 km/h |
| Paint | Metallic paint |
| Others | 7T front steering axles & 13T heavy-duty rear axles |
Superstructure | Capacity | 20T |
| Standard Configuration ：Integrated tow-lift wrecker body, max lifting capacity 20ton (25ton optional) 2-section hexagonal high-strength telescopic boom, 20ton main hydraulic winch with 35m wire rope |
Optional | Optional configurations：/ |
5. Buying Guide
For overseas highway emergency management departments, large heavy salvage fleets and traffic law enforcement teams undertaking mass large vehicle rollover rescue business, purchasing ultra-heavy integrated tow-lift wreckers must focus on chassis load-bearing rigidity, structural material strength and hydraulic system stability:
Prioritize heavy-duty reinforced chassis configuration：Select 6×4 chassis equipped with triple-layer reinforced frame and dual 13-ton rear axles, matched with 350/400HP high-torque 6-cylinder power to guarantee stable 20-ton tow-lift operation performance.
Verify load-bearing structural steel specification：Confirm all boom and force-bearing brackets adopt 10mm high-strength thick steel plate, avoid thin low-strength steel to prevent permanent bending deformation after long-term heavy-load use.
Match lifting tonnage according to business intensity：Choose standard 20-ton lifting capacity for daily conventional heavy rescue; upgrade to 25-ton tonnage + 400HP high-power engine for high-frequency continuous large vehicle rollover disposal.
Adopt imported industrial-grade hydraulic supporting system：Select units equipped with imported hydraulic assembly and dual heavy-duty winches to cut oil leakage failures and long-term parts replacement expenses.
Configure customized auxiliary safety accessories：Add wireless remote control, high-brightness rescue work lights and wide anti-sink outrigger pads based on local road and night rescue working conditions to improve overall operation safety and environmental adaptability.
6. Operation and Maintenance Tips
Shacman 6×4 integrated tow-lift wrecker adopts ultra-rigid triple-layer frame, 10mm high-strength steel components and imported high-pressure hydraulic parts, featuring stable mechanical performance and low daily failure rate. Standardized classified operation and regular targeted maintenance can effectively extend the service life of all heavy-load core components:
Daily Operation Specifications
Fully extend all outriggers and lay wide anti-sink support pads flat before any heavy lifting or rollover correction work; prohibit lifting operation on soft, muddy or sloped ground to avoid vehicle rollover risks
Strictly follow the rated 20/25-ton lifting load limit, avoid long-time eccentric heavy load to protect 10mm steel boom and support brackets from local deformation
Comprehensively inspect hydraulic pipeline joints, winch locking mechanisms and frame welding seams before all-day heavy rescue missions to eliminate hidden oil leakage and structural fracture risks
Operate wireless remote control within valid signal range; immediately pause all hydraulic actions once signal loss or abnormal pressure occurs
Turn on high-brightness rescue work lights fully during night and low-visibility rescue operations to guarantee clear vision and prevent mechanical collision damage to load-bearing components
Regular Maintenance Advice
Use dedicated high-pressure anti-wear hydraulic oil for the imported hydraulic system; replace hydraulic oil and filter elements every 10 months to maintain stable stepless pressure output
Monthly lubricate boom hinge joints, winch transmission shafts and frame movable support points to reduce metal friction abrasion under long-term ultra-heavy load
Semi-annually inspect all welding seams of the triple-layer frame, boom and load-bearing brackets; timely reinforce cracked welding positions to prevent sudden structural fracture during rescue
Carry out routine maintenance on the 350/400HP 6-cylinder heavy-duty engine regularly, clean carbon deposits and replace filter consumables on schedule to sustain stable high torque output under continuous heavy workloads
Quarterly calibrate dual winch traction force and lifting hydraulic system pressure to ensure consistent, jitter-free and safe synchronous lifting & towing operation
Scientific and standardized regular maintenance can effectively protect high-strength mechanical structures and imported hydraulic assemblies, greatly reducing long-term heavy overhaul costs for ultra-heavy rescue equipment.
7. Frequently Asked Questions
Q1: What core functions can the Shacman 6×4 integrated tow-lift wrecker realize?
A1">It adopts integrated tow-lift design to complete synchronous lifting, lifting frame support and vehicle towing. It is an all-round heavy multi-purpose wrecker suitable for rollover vehicle righting, heavy truck recovery and scrap heavy vehicle transportation.
Q2: What are the advantages of its chassis power and load-bearing structure?
A2">It is equipped with 350/400HP 6-cylinder power, triple-layer reinforced frame and dual 13T rear axles, supporting stable 20-ton tow-lift load, with performance far superior to single-axle and 3-axle multi-functional wrecker trucks.
Q3: What customizable configurations does this heavy-duty recovery wrecker support?
A3">Customers can choose 20/25ton lifting capacity and 350/400HP power. Auxiliary devices including remote control, rescue work lights and wide outrigger pads are all optional personalized fittings.
Q4: What are the advantages of the boom, brackets and hydraulic system?
A4">Boom and brackets are manufactured from 10mm high-strength steel, matched with imported hydraulic assembly and dual heavy winches. The whole system features low deformation and zero leakage under long heavy work, cutting daily equipment maintenance expenditure.
Q5: What main working scenarios is this ultra-heavy tow-lift wrecker applicable to?
A5">It is widely used for highway heavy vehicle rollover correction, stranded large truck salvage, scrap heavy vehicle long-distance transportation and all-weather round-the-clock heavy emergency rescue operations.
Conclusion
The Shacman 6×4 Integrated Tow-Lift Wrecker is an export-grade ultra-heavy multi-functional road recovery vehicle specially developed to solve insufficient load capacity and single-function defects of ordinary single/3-axle multi-purpose wreckers. Built on mature Shacman original 6×4 heavy chassis, it is equipped with triple-layer reinforced frame, dual 13-ton heavy rear axles and optional 350/400HP 6-cylinder high-torque power unit, delivering stable 20-ton standard tow-lift load capacity.
With exclusive integrated tow-lift structural design, it realizes synchronous lifting, frame supporting and vehicle towing to finish rollover correction, heavy truck recovery and scrap vehicle transport independently. All load-bearing boom and brackets adopt 10mm high-strength thick steel, paired with imported leakage-proof hydraulic assembly and dual heavy-duty winches to lower structural deformation and long-term maintenance costs. It supports flexible customization of lifting tonnage, engine power and safety auxiliary accessories, eliminating the high procurement and coordination cost caused by separately purchasing cranes and medium wreckers.
With outstanding ultra-heavy load resistance, stable all-weather continuous working performance and diversified personalized configuration options, this Shacman heavy tow-lift wrecker is indispensable emergency rescue equipment for overseas highway traffic management departments, large heavy salvage fleets and road engineering contractors, bringing excellent comprehensive economic benefits and fast investment return for long-term heavy road rescue business.
