SINOTRUK HOWO 371HP 6×4 Heavy Duty
Dump Truck Export Introduction
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Vehicles
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview
Core Product Keywords: SINOTRUK HOWO 371HP
6×4 Dump Truck, rear eight-wheel heavy tipper, 3-axle mining dumper, double differential lock tipper, high payload
Hydraulic Dump Truck, mine ore transport lorry, engineering earthwork dumper, LHD export heavy truck
Alternative Names: SINOTRUK HOWO 371HP Rear
Tipper Lorry, 6×4 High-torque
Mining Dump Truck, Weichai Euro II Mechanical Pump Heavy Dumper, Left-hand Drive Overseas Engineering Truck
Brief Introduction

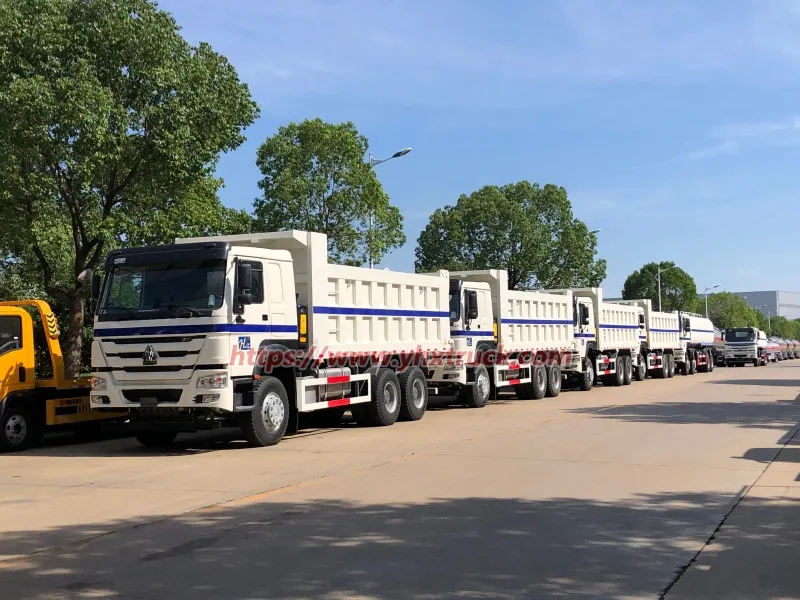

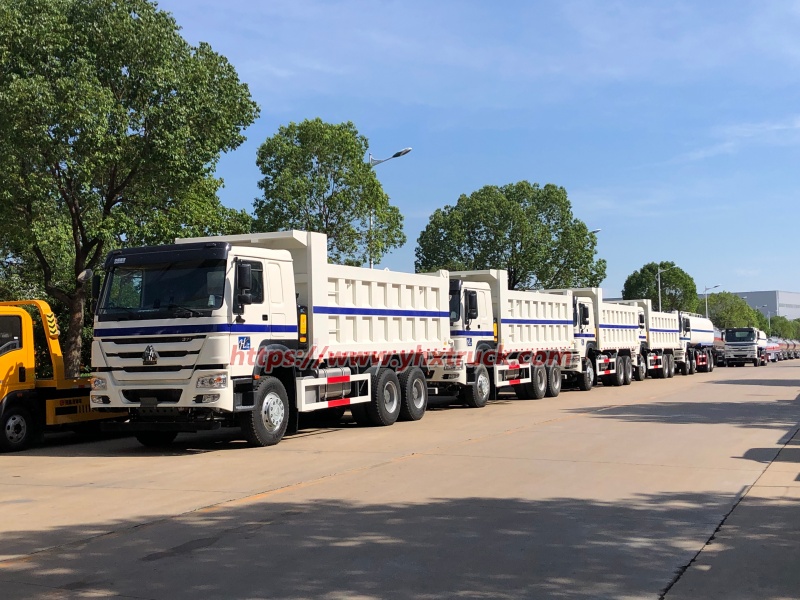

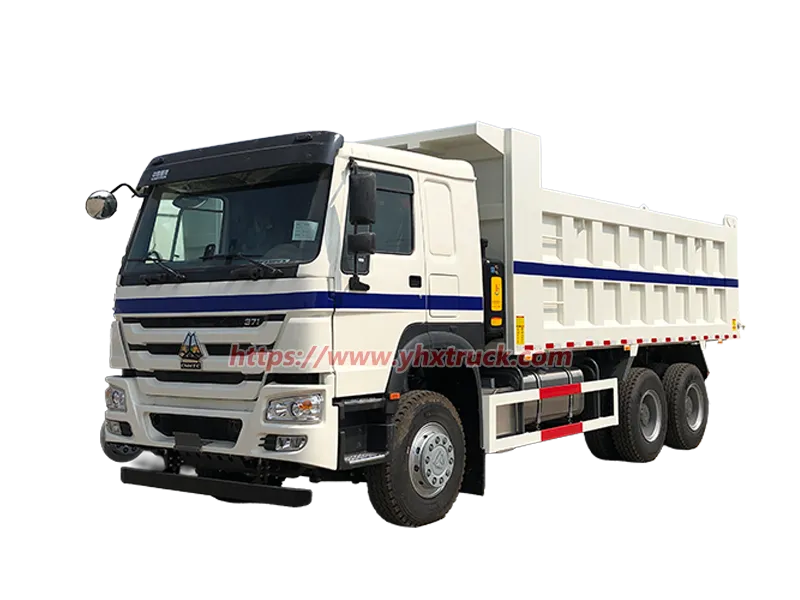

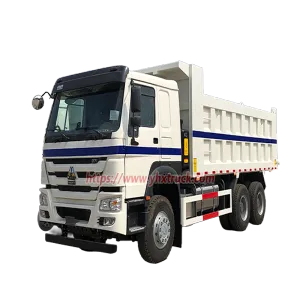

SINOTRUK HOWO 371HP 6×4
Heavy Duty Dump Truck, Classic High-power Heavy Tipper Optimized for Harsh Overseas Mining and Large-scale Infrastructure Projects

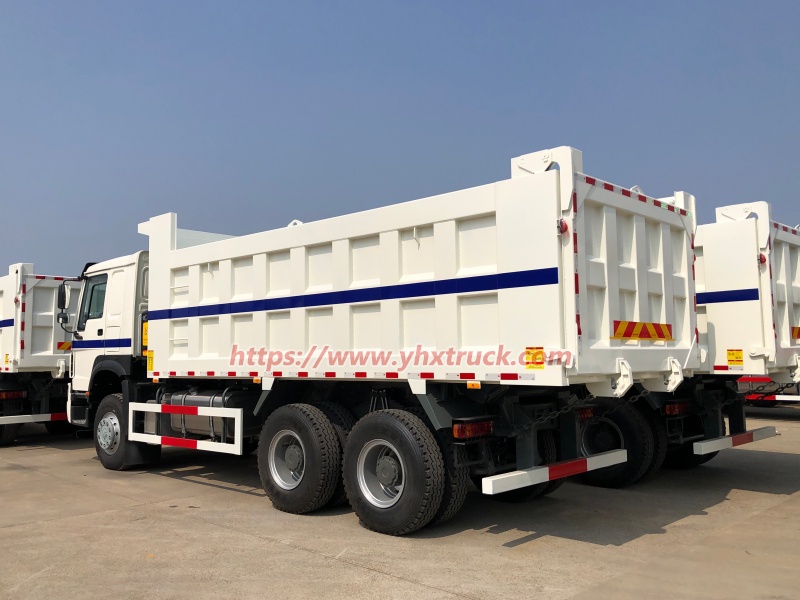

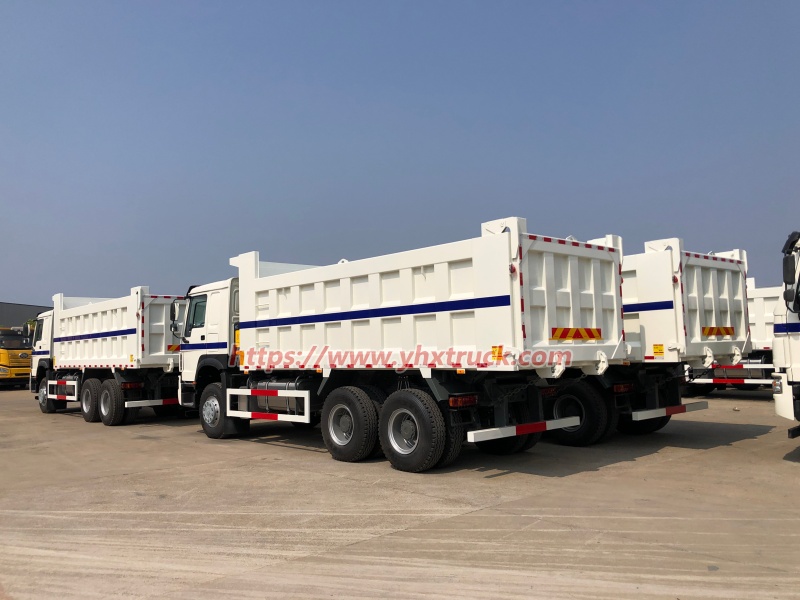

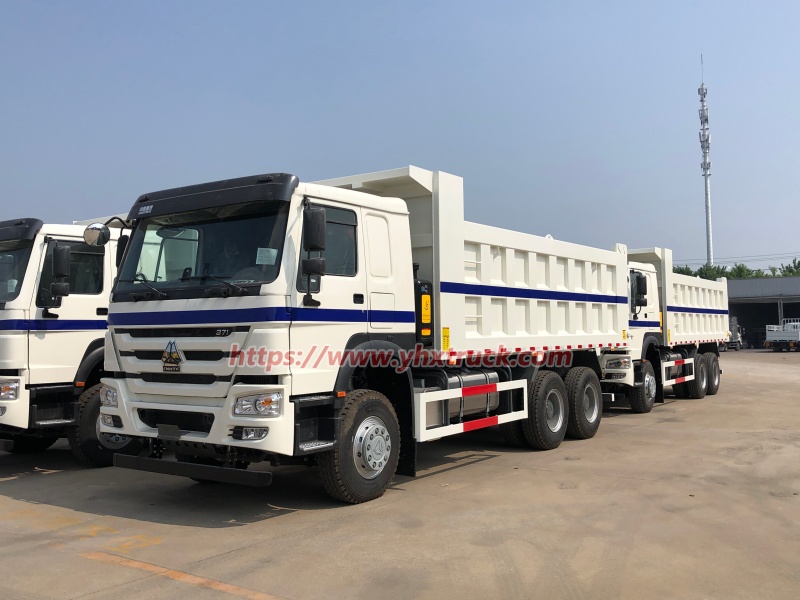

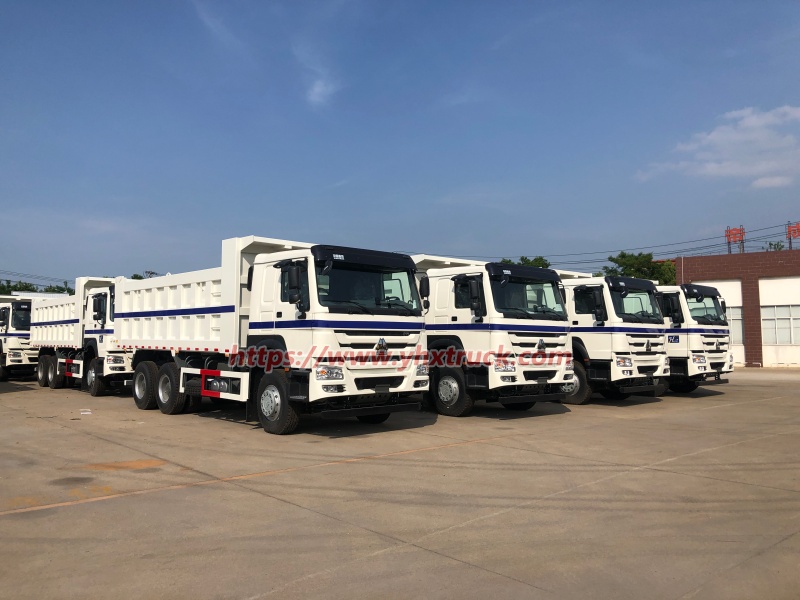

Product Description
This classic HOWO 6×4 rear eight-wheel dump truck adopts 6×4 dual rear drive axles structure, delivers far stronger load-bearing capacity than 4×2 single rear axle vehicles. It is designed with 25000kg GVW and large rated payload, greatly improving transport efficiency for mine ore, earthwork and aggregate haulage. The whole vehicle is equipped with 16T wheel-reduction rear axles fitted with inter-axle plus inter-wheel double differential locks, bringing superior off-road trafficability. It can easily pass muddy, bumpy mine roads where single axle trucks get stuck frequently.
It adopts large-volume wear-resistant manganese steel tipper body, matched with front hydraulic lifting cylinder to realize one-time high-volume unloading, cutting delivery times remarkably compared to small cargo box of single axle dump truck. Powered by Weichai 371HP Euro II mechanical pump engine, it outputs stronger low-speed torque than 340HP version, fully satisfying heavy-load climbing and hydraulic tipping demands. The mechanical fuel system adapts to poor-quality diesel and requires simple maintenance without complex electronic parts. Matched with SINOTRUK 10-speed heavy transmission and high-power PTO, it provides stable hydraulic lifting power for large tipper box. Reinforced double-layer riveted frame and balanced suspension guarantee ultra-strong load-bearing performance. It adopts flipable wide LHD cab holding 3 passengers with optional A/C. Supplied with complete export certification documents, it is the mainstream heavy transport vehicle for Africa, Central Asia and Southeast Asia infrastructure construction.
Core Functions
This export-grade SINOTRUK HOWO 371HP heavy dump truck is upgraded based on classic heavy-duty vehicle platform, specially optimized for ultra-harsh working conditions including muddy mines, rugged mountain roads and full-load long-distance earthwork transportation. Different from low-power 340HP heavy tippers, it boosts engine horsepower and low-speed torque, upgrading heavy-load climbing and unloading efficiency; compared with fragile 4×2 single-axle dump trucks, dual-drive structure plus double differential locks eliminate road slipping and trapping risks.
Equipped with full mechanical powertrain, it gets rid of sensitive electronic control modules, perfectly adapting to inferior diesel widely used in developing regions. Benefiting from huge global market stock and universal spare parts, it slashes long-term fleet operating cost. Standard LHD layout and full export qualifications support barrier-free customs clearance and local registration, becoming the most cost-effective mainstream heavy engineering vehicle for overseas mining contractors and infrastructure enterprises.
Product Core Functions & Advantages
1. Superior Load-bearing & High Transport Efficiency
The 6×4 dual rear drive axles structure delivers far stronger load-bearing capacity than 4×2 single rear axle. Its 25000kg GVW and large rated payload greatly improve transport efficiency for mine ore, earthwork and aggregate haulage, cutting overall delivery cycle.
2. Industry-leading Off-road Trafficability
Equipped with 16T wheel-reduction rear axles & inter-axle plus inter-wheel double differential locks, the rear eight-wheel tipper owns superior off-road trafficability. It easily passes muddy, bumpy mine roads where single axle trucks get stuck frequently.
3. Large-volume Wear-resistant Unloading System
Adopts large-volume wear-resistant manganese steel tipper body with front hydraulic lifting cylinder. It realizes one-time high-volume unloading, remarkably reducing delivery times compared to dump trucks with small single-axle cargo box.
4. Upgraded 371HP High-torque Powertrain
Equipped with Weichai 371HP Euro II mechanical pump engine, delivering stronger low-speed torque than 340HP version for heavy climbing and tipping. The mechanical fuel system adapts to poor-quality diesel and requires simple maintenance without complex electronic parts.
5. Stable Hydraulic & Chassis Performance
Matched with 10-speed heavy transmission and high-power PTO, it provides stable hydraulic lifting power for large tipper box. The reinforced double-layer riveted frame and balanced suspension ensure strong load capacity for mine, earthwork and construction transport.
6. Low Operation Cost & Full Export Compliance
With huge global market stock, universal spare parts and mature service network, the HOWO rear eight-wheel model maintains lower long-term operation cost. Complete export certification documents and standard LHD layout make it ideal for Africa, Central Asia and Southeast Asian markets.

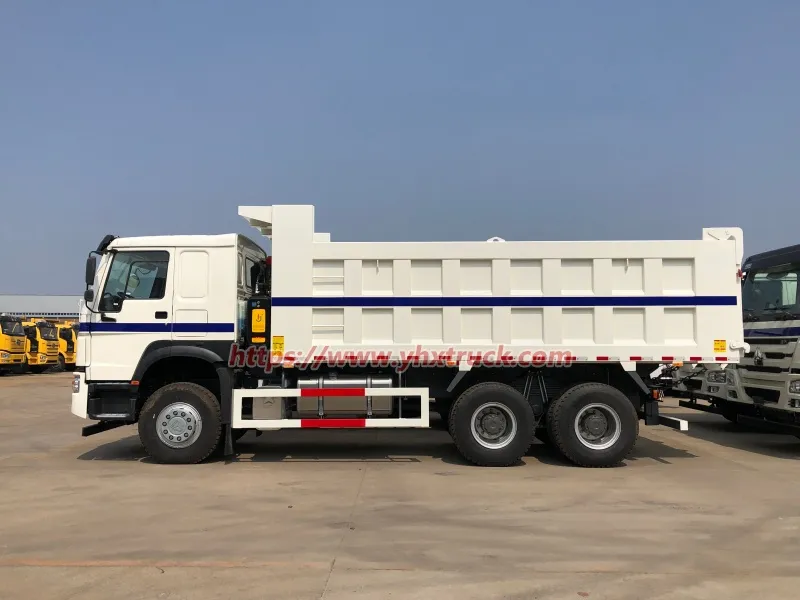

Structural Features
1. 6×4 three-axle, dual rear drive layout, rear eight-wheel heavy-duty structure, 25000kg full-load GVW
2. 16-ton wheel-reduction rear axles, equipped with inter-axle and inter-wheel double differential locks
3. Weichai 371HP inline 6-cylinder turbo engine, Euro II mechanical injection pump, full mechanical fuel system
4. SINOTRUK original 10-speed heavy manual transmission, matched with high-power dedicated PTO
5. Thickened double-layer riveted reinforced frame + heavy-duty balanced leaf spring suspension
6. Large-capacity manganese steel cargo box, front-mounted large-tonnage hydraulic lifting cylinder
7. Flipable wide LHD cab, 3-passenger seating space, optional factory air conditioner
8. Mass-produced classic model, global universal spare parts, full-set official export certification
Technical Parameters
Item | Specification |
Vehicle Brand | SINOTRUK HOWO |
Drive Type | 6×4 Dual Rear Drive |
GVW | 25000kg |
Engine Model | Weichai 371HP, Inline 6-cylinder Turbo |
Emission Standard | Euro II Mechanical Pump |
Transmission | 10-speed Heavy Manual with High-power PTO |
Rear Axle | 16T Wheel-reduction Axle, Double Differential Locks |
Cargo Body | Large-volume Wear-resistant Manganese Steel |
Hydraulic System | Front Large-tonnage Lifting Cylinder |
Cab | 3-seater Flipable LHD Cab, Optional A/C |
Export Document | Complete Official Certification |
2. Working Principle
The whole vehicle operating system consists of five core linkage modules: reinforced bearing chassis system, Weichai high-power mechanical power system, heavy-duty transmission power distribution system, differential lock off-road system and front hydraulic unloading system.
During daily operation, the upgraded Weichai 371HP Euro II mechanical pump engine outputs boosted low-speed torque, compared with 340HP version, it delivers stronger power output under full-load climbing and low-speed working status. Owing to pure mechanical fuel supply structure, it can stably burn low-quality local diesel without electronic alarm or shutdown failure. Engine power is transmitted to SINOTRUK 10-speed heavy transmission, and matched high-power PTO splits independent power and transmits it to the front hydraulic cylinder.
The front hydraulic assembly pushes up the large-volume manganese steel cargo box to finish one-time high-capacity rear tipping unloading, realizing efficient material turnover. The reinforced double-layer riveted frame bears heavy impact from bulk ore and earthwork; balanced suspension buffers bumpy vibration on rough roads. When driving on muddy and slippery mine roads, inter-axle plus inter-wheel double differential locks take effect, locking idle rotating wheels to increase ground adhesion, preventing vehicle trapping and sideslip.
The 6×4 dual rear drive structure averts overload chassis deformation of single-axle trucks, disperses axle load to extend chassis service life. The flipable cab realizes rapid engine detection and parts replacement to cut maintenance time. Supported by complete export certification and standard LHD steering design, it complies with traffic rules and import policies of left-traffic countries in Africa, Central Asia and Southeast Asia.
3. Daily Application Scenarios
Open-pit Mining Transportation: Mine raw ore haulage, mine waste residue cleaning, stony and muddy mine site material turnover, adapt to extreme rough road conditions
Large-scale Civil Engineering: Hillside earthwork transportation, road foundation backfilling, municipal muck removal, dam and water conservancy heavy material delivery
Aggregate & Quarry Operation: Large-batch quarry stone transportation, mixing station raw material supply, river sand bulk haulage, high-efficiency short-cycle turnover
Overseas Key Infrastructure Projects: National-level engineering bidding projects in Africa, Central Asia and Southeast Asia, long-term continuous heavy-load operation
4. Comparison with Traditional Vehicles
Vs 4×2 Single Rear Axle Dump Trucks: 4×2 single-axle tippers own limited payload and weak bearing capacity, easy to get stuck on muddy mine roads, with small cargo volume and low transportation efficiency. This 6×4 dual-drive model has larger GVW, double differential locks and high trafficability, suitable for long-term heavy-load operation, while single axle trucks only fit light-duty short-distance tasks.
Vs 340HP Same-model HOWO Dump Truck: The 340HP version meets basic engineering transport demands, with ordinary low-speed torque. This upgraded 371HP model delivers stronger torque output, performs better on mountain climbing and heavy-load unloading, greatly improving working efficiency without increasing daily maintenance difficulty and procurement cost.
Vs European Brand Heavy Tippers: European heavy trucks have high selling price, exclusive customized spare parts and expensive after-sales cost. This classic HOWO 371HP model owns huge global stock, universal spare parts and mature overseas service network, realizing much lower long-term operation cost with equivalent heavy-load performance.
Vs Electronically Controlled Heavy-duty Trucks: Electronic-control engines are sensitive to impure diesel, prone to sensor failure and flameout. This Euro II mechanical pump model cancels complicated electronic components, features fault resistance and easy on-site repair, perfectly adapting to fuel conditions of underdeveloped regions.
5. Buying Guide
For overseas mining groups, large engineering contractors and heavy transport fleets, confirm core configurations before cross-border procurement:
Verify Export Legal Qualification: Check complete official export certification documents to ensure barrier-free customs clearance and local vehicle registration; standard LHD layout matches left-traffic markets including Africa, Central Asia and Southeast Asia.
Confirm High-power Original Powertrain: Inspect genuine Weichai 371HP Euro II mechanical pump engine, reject modified power assembly; verify matched 10-speed transmission and high-power PTO to guarantee stable hydraulic lifting output.
Check Off-road Configuration: Prioritize models equipped with 16T wheel-reduction rear axles and dual differential locks for mine and muddy road working conditions; select basic differential lock version for flatland infrastructure projects to cut cost.
Cargo Body Configuration Selection: Adopt standard large-volume manganese steel cargo box for bulk material transportation; reinforce floor thickness if transporting sharp hard ore to extend service life.
After-sales Spare Parts Confirmation: Make use of HOWO global spare parts supply advantages, confirm local spare parts warehouse resources; optional A/C configuration is recommended for tropical high-temperature regions to upgrade driving comfort.
6. Operation and Maintenance Tips
6.1 Daily Operation Specifications
Check engine oil, hydraulic oil level, brake air pressure and rear axle lubrication status before startup, strictly forbid overloading beyond 25000kg GVW
Turn on double differential locks in advance when driving into muddy, bumpy and slippery mine roads; disable differential locks while driving on paved roads to reduce tire wear
Park the vehicle completely and fasten hand brake before activating PTO function; prohibit gear shifting during hydraulic tipping process
Do not drive with lifted cargo box, prevent vehicle rollover and front hydraulic cylinder deformation or oil leakage
Fill local mainstream low-grade diesel, the pure mechanical engine has strong fuel compatibility without power attenuation
Fully reset hydraulic cylinder and cut off PTO power after unloading, then drive on public roads to protect transmission components
6.2 Regular Maintenance Advice
Clean ore and gravel residue inside manganese steel cargo box regularly, reduce body abrasion and local rust corrosion
Inspect front hydraulic cylinder and oil pipeline every month, eliminate hidden leakage risks to stabilize unloading performance
Regularly calibrate dual differential lock system, ensure flexible locking and unlocking to avoid off-road failure
Quarterly inspect Weichai 371HP engine fuel injection system, clean oil circuit to maintain steady power output
Lubricate rear axle and suspension joints periodically, reduce mechanical abrasion under long-term heavy-load vibration
Flip cab regularly to check engine pipeline, adopt universal SINOTRUK and Weichai genuine parts for replacement to shorten maintenance cycle
7. Frequently Asked Questions
Q1: What is the core advantage compared with 340HP HOWO 6×4 dump truck?
A1: It is upgraded with Weichai 371HP engine, generating stronger low-speed torque. It behaves better on mountain climbing and full-load hydraulic tipping, improves overall transport efficiency, while retaining the same low maintenance cost and mechanical stability as the 340HP classic model.
Q2: What is the function of double differential locks?
A2: It includes inter-axle and inter-wheel double differential locks. When one or multiple wheels slip on muddy roads, the device locks idle wheels to distribute driving torque evenly, preventing vehicle trapping, greatly improving mine road passability compared with ordinary single-differential vehicles.
Q3: Why is it more suitable for overseas mining projects?
A3: It integrates 6×4 dual-drive structure, high-torque mechanical power, wear-resistant large-volume cargo box and dual differential locks. It adapts to poor fuel and harsh road conditions; supported by global universal spare parts, it avoids long-term shutdown losses caused by difficult parts procurement.
Q4: Does the 371HP mechanical engine need professional maintenance?
A4: No. It cancels complex electronic control modules and sensors, adopts full mechanical fuel supply structure. Local ordinary maintenance workers can finish daily inspection and repair without professional electronic testing equipment, lowering overseas labor cost.
Q5: What overseas markets is this vehicle applicable to?
A5: Standard LHD layout fits all left-traffic countries, mainly applicable to Africa, Central Asia and Southeast Asia. With Euro II emission standard and complete export certificates, it can pass customs and complete local vehicle registration efficiently.
Conclusion
SINOTRUK HOWO 371HP 6×4 Heavy Duty Dump Truck is an upgraded classic heavy engineering tipper targeting global harsh working conditions. Inheriting mature SINOTRUK heavy-duty chassis technology, it upgrades powertrain output and off-road configuration, solving the pain points of insufficient torque, weak trafficability and high maintenance cost of traditional low-power and single-axle dump trucks.
Equipped with Weichai 371HP Euro II mechanical engine, dual differential lock drive axle, large-volume manganese steel cargo body and high-power hydraulic unloading system, this
LHD Dump Truck balances heavy-load capacity, cross-country performance and fuel adaptability. Benefiting from huge global vehicle stock, universal spare parts and complete export certification, it perfectly matches mining, earthwork and municipal infrastructure demands in Africa, Central Asia and Southeast Asia. It is a cost-effective, durable and low-maintenance mainstream heavy transport vehicle for overseas engineering and mining investors.
