Sinotruk HOWO 4x2 Hook Arm Garbage Truck Professional Introduction
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Sanitation Trucks
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview

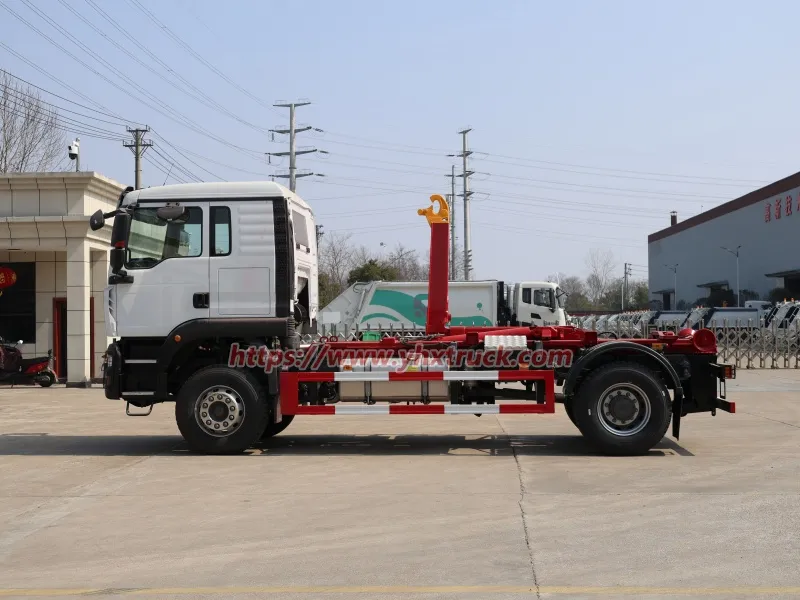

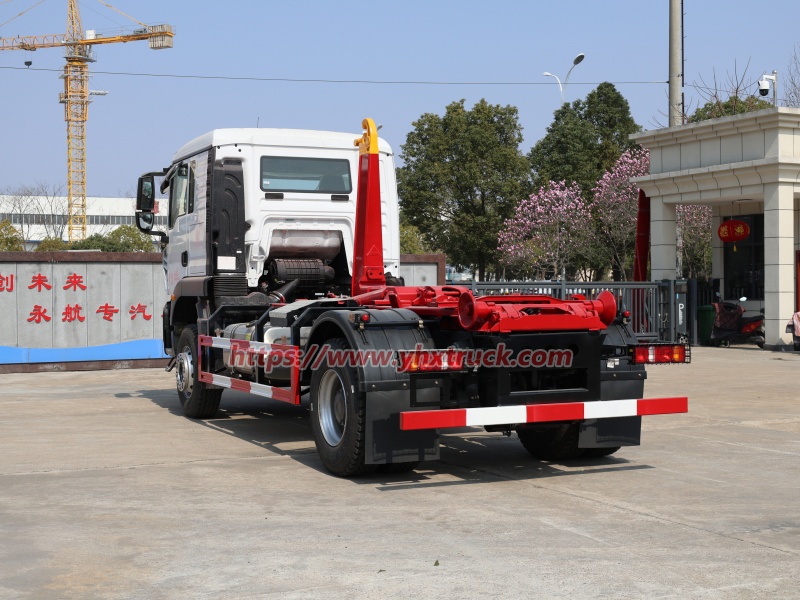

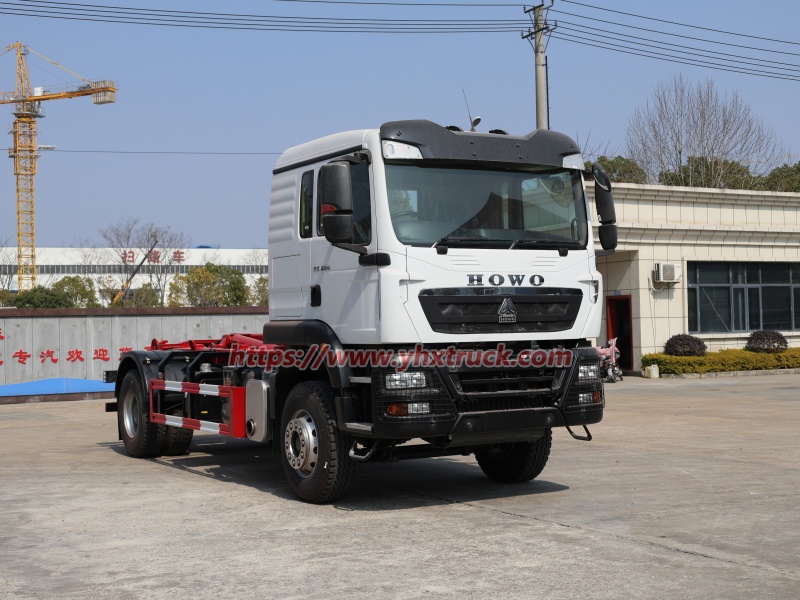

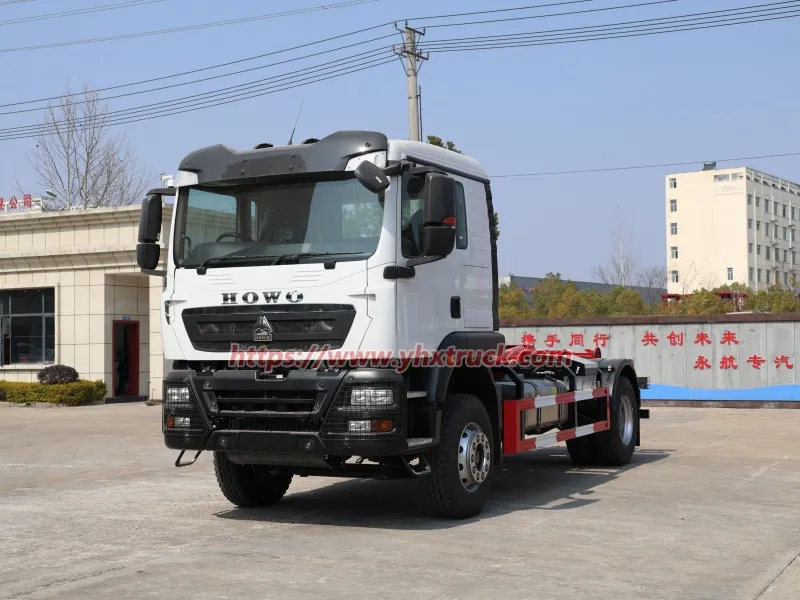

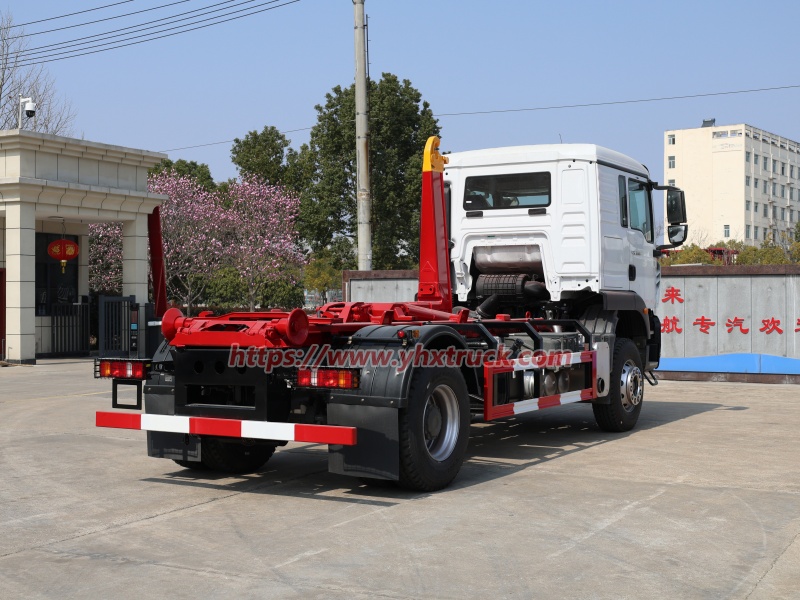

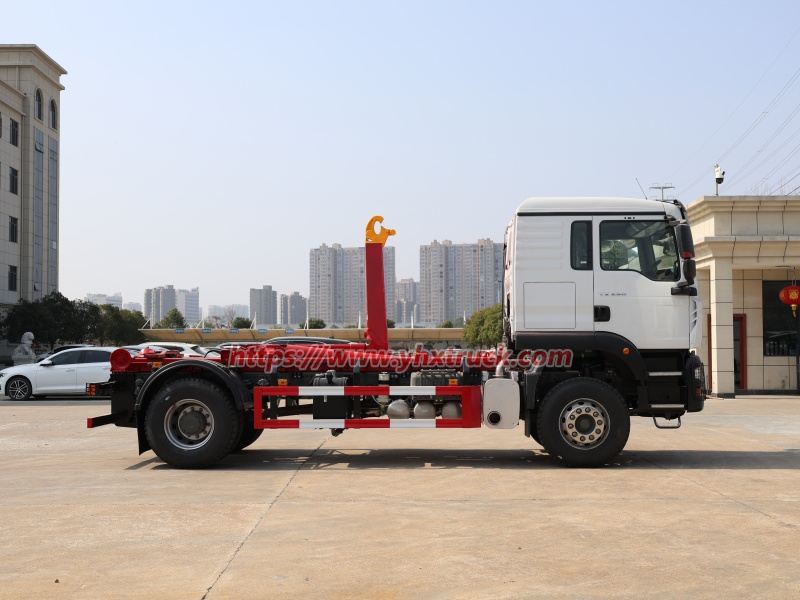

The Sinotruk HOWO 4x2 hook arm garbage truck is modified based on the mature HOWO medium truck chassis as a detachable container sanitation vehicle. Equipped with complete hydraulic hook arm assembly, it can automatically finish container hooking, lifting, transporting and unloading without external lifting equipment. Detachable bins can be separately arranged in residential quarters, commercial streets and construction sites to store domestic waste, construction residues, sludge and kitchen waste. The 4×2 two-axle design features compact body and small turning radius, perfectly suited for narrow urban roads and short-distance municipal waste transfer.
Core Characteristics & Key Details
Mature HOWO Medium-duty Chassis
Built on verified Sinotruk HOWO medium-duty original chassis, the vehicle adopts reinforced front and rear axle structure, specially optimized for daily urban and rural sanitation driving. The mature powertrain outputs steady power, matching road conditions of downtown roads, bumpy suburban lanes and rural pavements. Benefiting from standardized chassis assembly, it features low breakdown rate and universal overseas spare parts compatibility.
Full-set Hydraulic Hook Arm Assembly
It is equipped with factory-integrated full hydraulic hook arm assembly, with matched oil circuit and pressure stabilizing components. The whole lifting and traction structure undergoes strict heavy-load debugging, requiring no external cranes or auxiliary lifting tools. All hydraulic actions are controlled by in-cab operating levers, realizing fully automatic container loading and unloading, simplifying sanitation operation workflow.
Compact 4×2 Two-axle Body Structure
Different from heavy multi-axle sanitation trucks, this hook arm garbage truck adopts 4×2 two-axle layout, owning ultra-compact body size and minimum turning radius. It can flexibly pass narrow urban streets, community lanes and crowded business districts, solving traffic obstruction problems of large sanitation vehicles, and maximizing working attendance rate for short-distance waste transfer.
Multi-purpose Detachable Sealed Bins
The matched detachable garbage bins support scattered placement at multiple waste collection points. With sealed bin body design, it can hold diversified wastes including domestic garbage, construction residues, sludge and kitchen waste. Bin specifications support personalized modification to satisfy local municipal environmental protection requirements.
Core Advantages
1. This Sinotruk HOWO 4x2 hook arm garbage truck applies the one-truck multi-bin operation mode, realizing centralized collection after decentralized storage and effectively cutting vehicle purchase and maintenance costs.
2. The original HOWO chassis with reinforced front axle and rear axle delivers stable load capacity and good passability for urban and rural roads.
3. Its hydraulic hook arm system supplies stable strong lifting force with low failure rate, supporting frequent continuous operation.
4. Sealed containers avoid sewage leakage, garbage spilling and odor escaping to prevent secondary pollution and comply with environmental standards.
5. A single driver can complete all operations inside the cab to save labor expenses, and container specifications are customizable.
6. This hook arm garbage truck boasts flexible maneuverability and high attendance rate, achieving superior economic benefits for short-distance urban sanitation transportation.
2. Working Principle
The whole operation system consists of HOWO medium-duty chassis power system, integrated hydraulic hook arm system and detachable sealed garbage bins. After vehicle startup, the driver engages the power take-off to transmit engine power to the hydraulic pump, converting mechanical power into hydraulic pressure energy.
By manipulating integrated control handles inside the cab, hydraulic oil drives the hook arm to complete positioning, hooking, lifting and locking actions. Relying on hydraulic circulating power, the truck can finish loading, road transportation and automatic unloading without any external lifting equipment or on-site auxiliary workers.
Based on split truck-bin structure, sanitation departments can place multiple idle sealed bins at scattered waste collection points in advance to store waste offline. After bins are fully loaded, the hook arm truck carries out cyclic bin replacement and centralized waste transfer. The whole working process features simple logic, stable linkage and low operation threshold.
3. Daily Application Scenarios
Urban Municipal Sanitation: Short-distance daily waste transfer, street garbage collection, downtown environmental sanitation operation, adapting to narrow urban road network
Residential Quarters: Regular domestic garbage clearance for high-density communities, solving narrow passage traffic problems of large sanitation vehicles
Commercial Streets: Waste disposal for shopping districts, catering blocks, centralized collection of kitchen waste and daily rubbish
Construction Sites: Regular transportation of construction residues, engineering sludge and decoration waste, keeping construction sites tidy
Rural Sanitation Renovation: Cross-village scattered waste collection, adapting to complicated rural road conditions
4. Comparison with Traditional Sanitation Trucks
Vs Large Heavy-duty Sanitation Trucks: Multi-axle heavy garbage trucks have oversized body and large turning radius, unable to enter urban narrow roads and residential lanes. This HOWO 4×2 hook arm truck features compact size and flexible steering, with wider urban working adaptability and higher daily attendance rate.
Vs Integrated Fixed-bin Garbage Trucks: Traditional integral sanitation vehicles cannot separate bins from chassis, which must stop working for unloading, causing low efficiency. This detachable hook arm truck realizes bin-truck separation, supporting uninterrupted cyclic waste collection to boost output.
Vs Ordinary Refitted Hook Trucks: Common refitted sanitation vehicles adopt non-matched scattered hydraulic parts, with unstable lifting force and frequent faults. This factory-assembled hook arm truck adopts original matched hydraulic assembly, cooperating with reinforced HOWO chassis, with stronger continuity and lower maintenance cost.
Sinotruk HOWO Hook Arm Garbage Truck 4x2 (TX Cab) chassis (16ton Lifting Capacity) |
General | Chassis Brand | SINOTRUK HOWO TX 4x2 |
| Overall Dimension | 7280X2550X3020mm |
| GVW / Kerb Weight | 18000kg /9550kg |
Cab | Driving Room | TX-F cab (flat rear wall) |
| Air Conditioner | W/ air conditioner |
Engine | Engine Model | WD615.87 engin |
| Max Power | 290HP |
| emission standard | Euro 2/Euro 3 |
Transmission | Transmission Brand | HW |
| Transmission Box | 10-speed |
Chassis | Drive Axle | Single MCX16ZG drum rear axle, gear ratio 4.803 |
| Tire Specification | 315/80R22.5 (mixed tread / 18PR) |
Superstructure | Lifting Capacity | 16ton |
| Waste Box Material | Carbon steel |
| Mechanical hook arm, subframe, locking mechanism, hydraulic system, control and safety protection components，detachable mobile container station |
5. Buying Guide
For overseas municipal sanitation departments, environmental contractors and sanitation fleet purchasers, verify key configurations before procurement to match local urban operation conditions:
Genuine HOWO Medium-duty Chassis: Original Sinotruk HOWO 4×2 chassis with reinforced axles, optional multi-country emission standards, universal overseas spare parts, easy cross-border after-sales service.
Matched Integral Hydraulic Hook Arm: Factory calibrated hydraulic assembly, stable lifting power, anti-shock hydraulic circuit design, suitable for high-frequency continuous daily operation.
Standard Detachable Sealed Bins: Environmental sealed bin body, anti-leakage and odor-proof function; customizable bin capacity, thickness and outer structure to fit municipal bidding standards.
Compact Urban Adaptation Configuration: Optimized steering system, small turning radius design, specially customized for crowded urban traffic scenarios.
Complete Export Qualification: Full set of export certification, inspection reports and customs clearance documents, applicable for government sanitation bidding and bulk procurement.
6. Operation and Maintenance Tips
Standardized operation and regular maintenance can stabilize hydraulic performance, reduce failure rate and prolong vehicle service life:
6.1 Daily Operation Specifications
Check chassis oil level and hydraulic pipeline tightness before startup to avoid insufficient lifting force and oil leakage
Park the truck on flat ground before hooking garbage bins to prevent rollover caused by unbalanced stress
Align hook head with bin hanging points accurately, prohibit offset hooking to protect hydraulic components and bin structure
Operate hydraulic levers steadily, avoid sudden lifting or stopping to prevent hydraulic pressure impact
Check bin sealing status and locking device before driving to avoid garbage leakage and odor dispersion
6.2 Regular Maintenance Advice
Replace special hydraulic oil every 12 months to keep stable lifting output of hook arm
Add lubricant to hook arm rotating joints monthly to reduce mechanical abrasion and abnormal noise
Clean hydraulic filter regularly to prevent pipeline blockage and pressure attenuation
Inspect bin sealing strips quarterly, replace aging accessories to maintain environmental protection performance
Check front and rear axle fastening parts termly to guarantee chassis driving stability
7. Frequently Asked Questions
Q1: Official export name of this sanitation vehicle?
A1: Standard export names: Sinotruk HOWO 4x2 Hook Arm Garbage Truck, Detachable Container Waste Transfer Truck, Hydraulic Hook Lift Sanitation Truck.
Q2: What kinds of waste can it transport?
A2: It is applicable for domestic waste, kitchen waste, construction residues and engineering sludge, covering municipal, residential, commercial and construction scenarios.
Q3: Why is 4×2 two-axle design more suitable for city sanitation?
A3: It owns compact body and small turning radius, flexible to pass narrow urban roads and community passages, with low traffic restriction and high operation attendance rate.
Q4: Can old local garbage bins match this truck?
A4: Yes. It adopts international universal hanging interface, compatible with most mainstream detachable garbage bins, no secondary modification required to save extra cost.
Q5: Is container customization available?
A5: Fully customizable. We can adjust bin volume, steel plate thickness, sealing structure and appearance according to overseas urban sanitation standards.
Conclusion
Sinotruk HOWO 4x2 hook arm garbage truck is an economical and flexible sanitation vehicle tailored for urban short-distance waste disposal. Built on mature and reliable HOWO medium-duty chassis, equipped with stable full-set hydraulic hook arm system, it realizes automatic loading, transportation and unloading of detachable garbage bins.
Benefiting from one-truck multi-bin mode, compact body maneuverability and sealed environmental protection design, it solves poor road passability, high operation cost and secondary pollution defects of traditional sanitation trucks. With simple operation, low maintenance difficulty and high comprehensive cost performance, it is reliable sanitation equipment for overseas municipal governance, urban environmental upgrading and rural sanitation projects.
