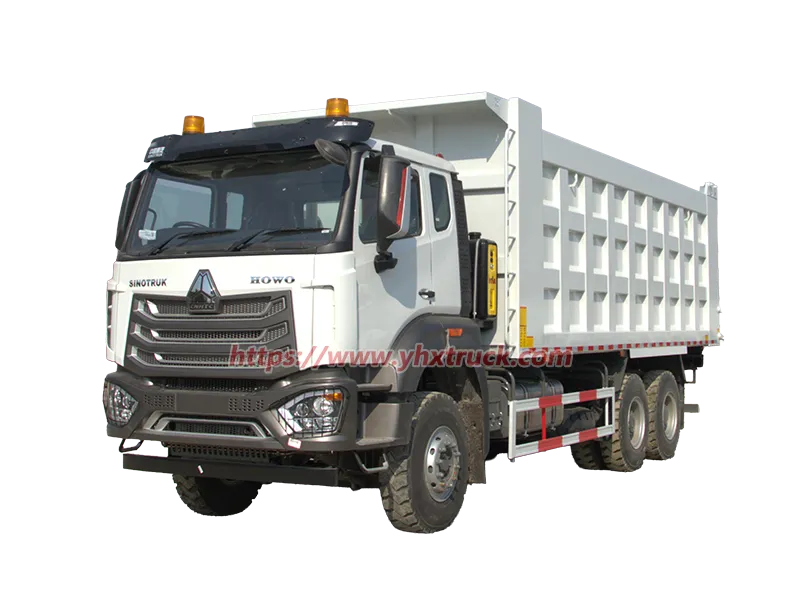

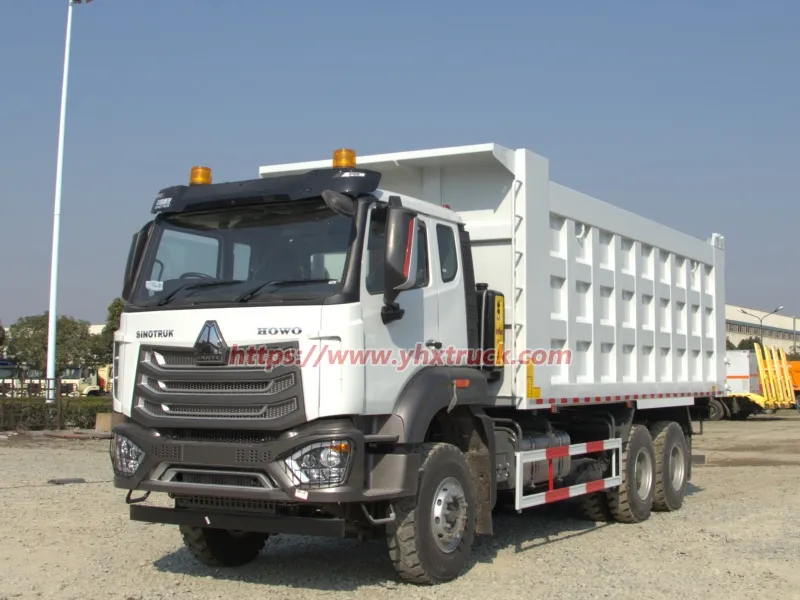

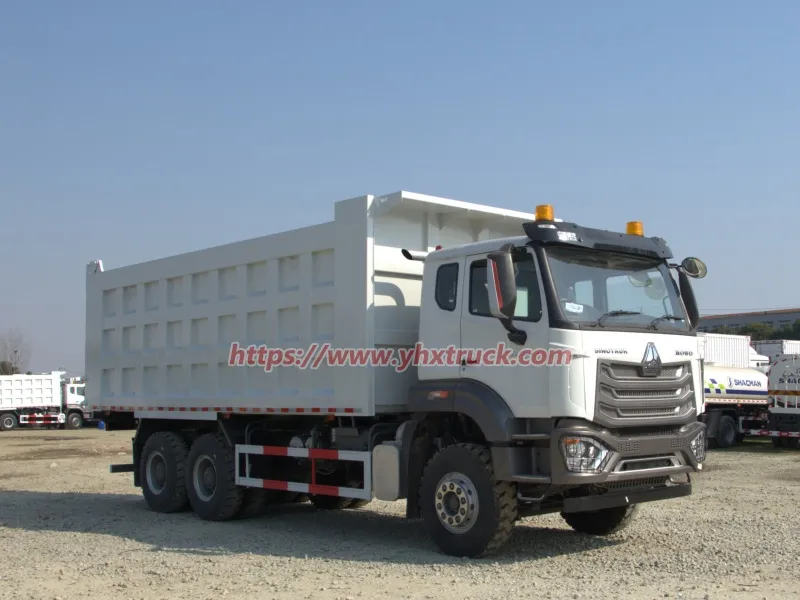

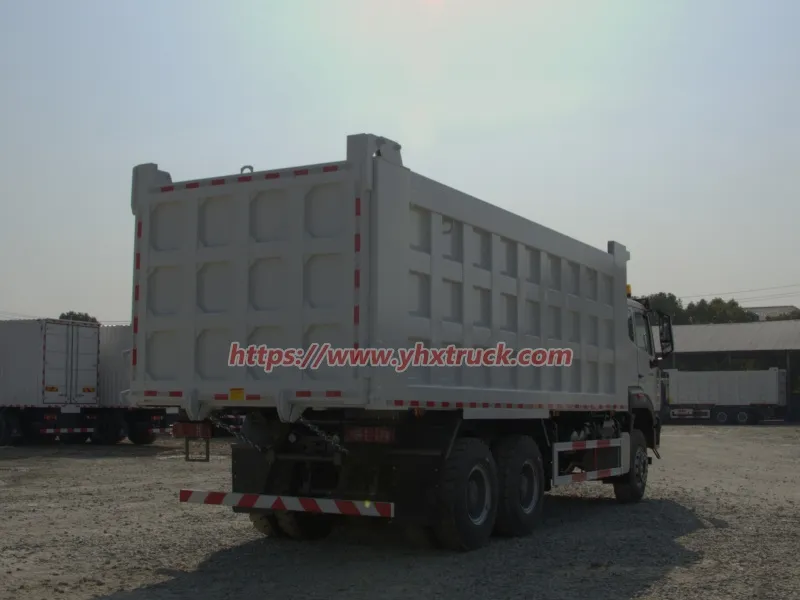

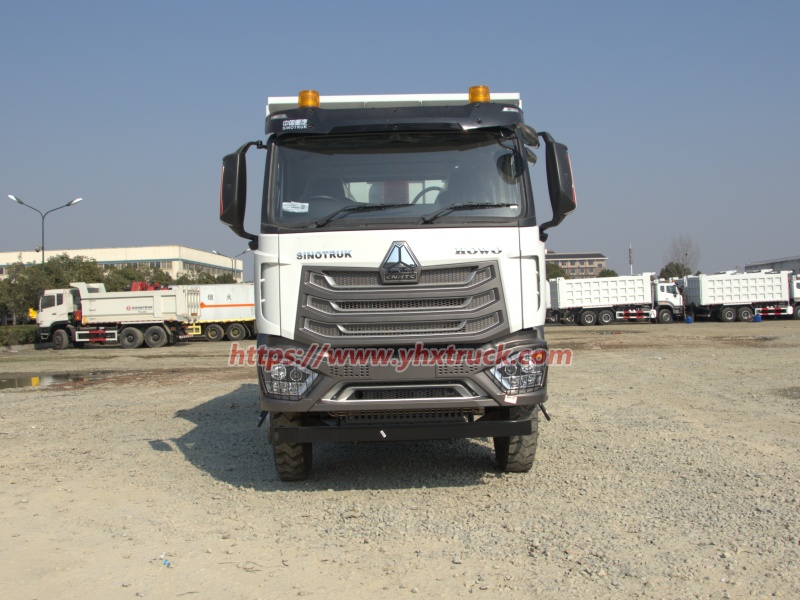

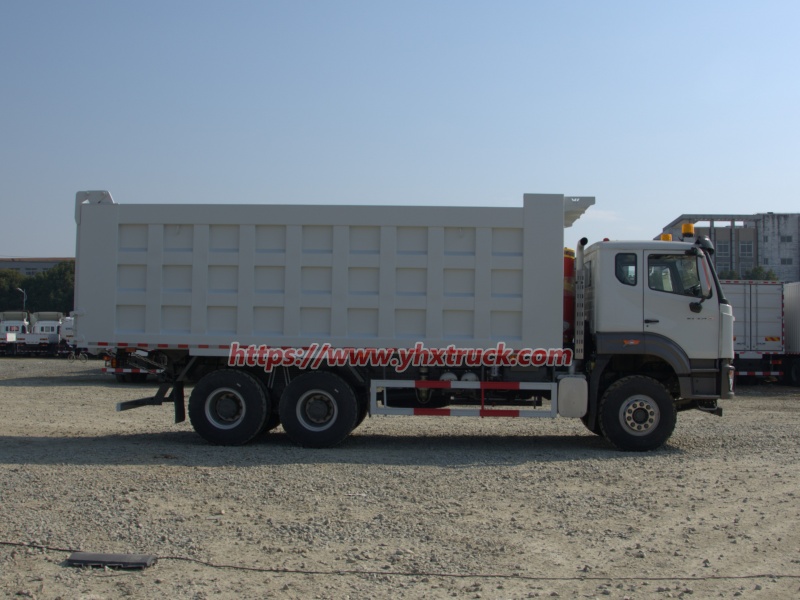

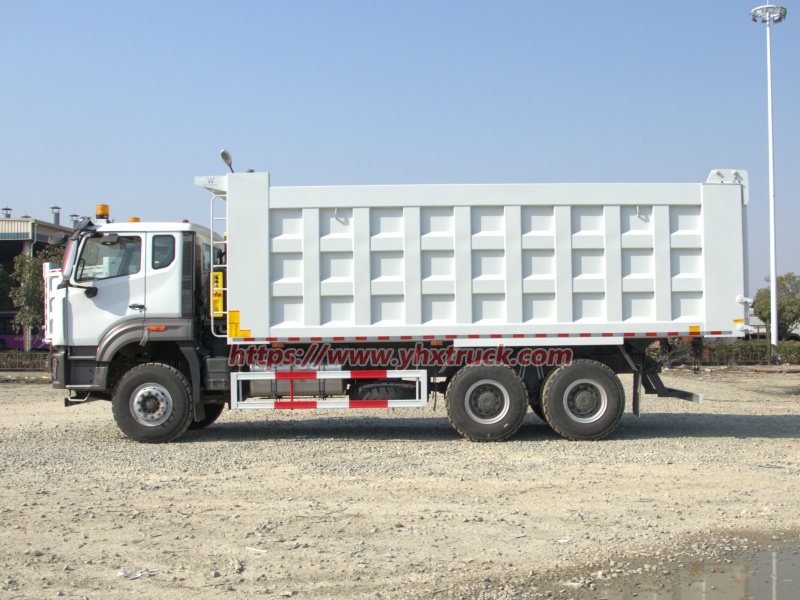

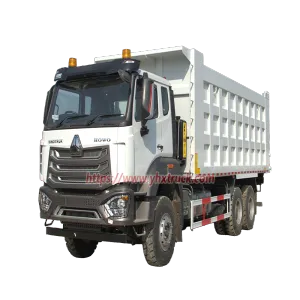

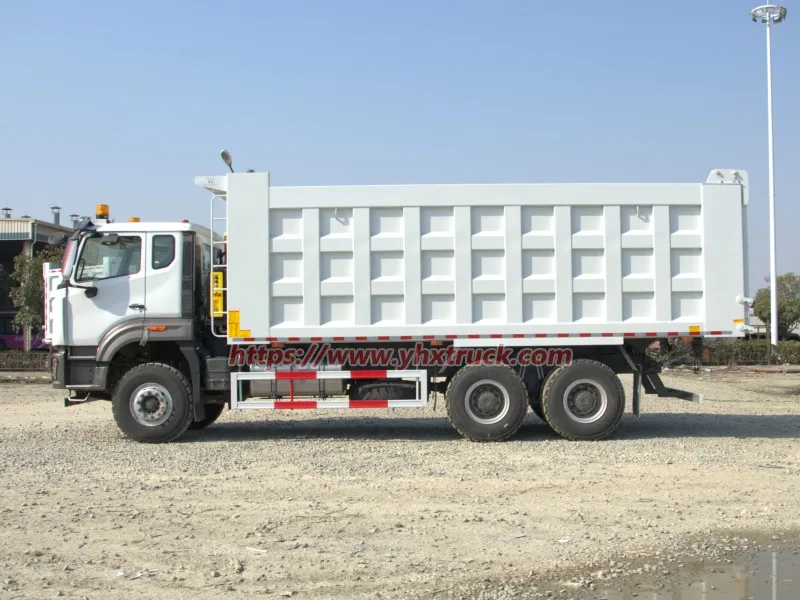

SINOTRUK HOWO NX HP6×4 Dump Truck :
HOWO NX 6×4 dump truck, rear eight-wheel tipper, Weichai 340HP engine, Euro II mechanical pump, wheel-reduction rear axle, double differential lock, heavy-duty PTO, manganese steel cargo box, flipable NX cab, full air brake ABS, LHD export mining truck
SINOTRUK HOWO NX HP 6×4 dump Truck Advantages:
· Optimized NX cab aerodynamic design, better heat dissipation, larger maintenance opening angle for easier overhaul
· Upgraded shock absorption and sealing, lower noise for long-hour operation
· Mature 6×4 heavy-duty platform, universal spare parts globally, low maintenance cost
· Full export certification documents, LHD layout fits Africa, Central Asia, Southeast Asia left-traffic markets
· Powerful low-speed torque, stable performance for mine, earthwork, sand, ore and muck transportation
General | Chassis Brand | SINOTRUK HOWO NX |
Overall Dimension | 9600X2550 X3250 mm | |
Cargo Box Dimension | 5800×2300×1500mm | |
GVW / Kerb Weight | 25000kg / 13700kg | |
Cab | Cab Capacity | 3persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | Weichai Power Engine | |
Power | 340Hp (250KW) | |
Displacement | 9726ml | |
Emission Standard | Euro2/3/4/5 | |
Chassis | Drive Type | left or right hand drive |
Transmission | SINOTRUK HW19710 10-speed manual gearbox with heavy-duty PTO | |
Wheelbase | 3825mm +1350mm | |
Tyre Specification | 12.00R20 | |
Tyre Number | 10tyres and 1 spare type | |
Max Speed | 89 km/h | |
Paint | Metallic paint | |
7T front steer axle; 16T wheel-reduction double rear drive axles, ratio 5.73, with inter-wheel & inter-axle differential lock | ||
Superstructure | Capacity | 25T |
Standard Configuration ：8mm wear-resistant steel, Floor:10mm wear-resistant steel | ||
Optional | Optional configurations：10mm high strength steel, Floor: 12mm high strength steel | |
